1. Description

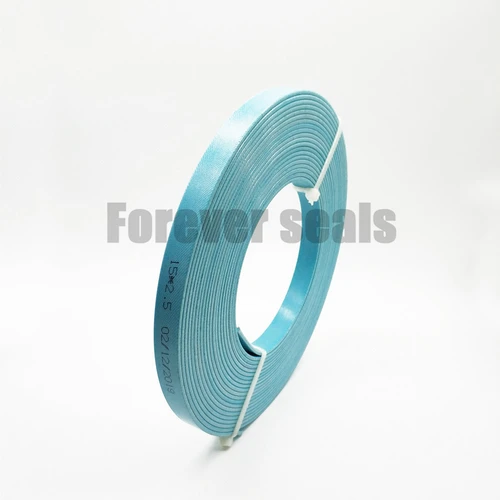

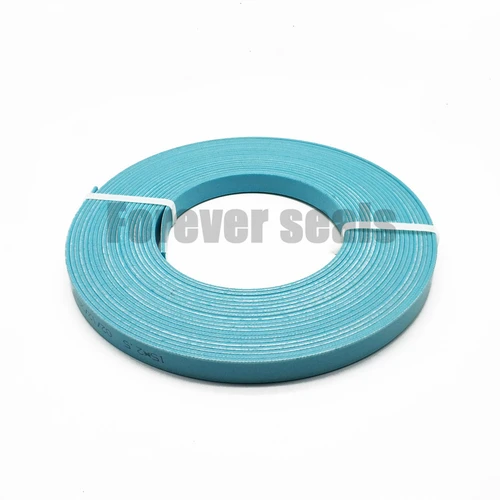

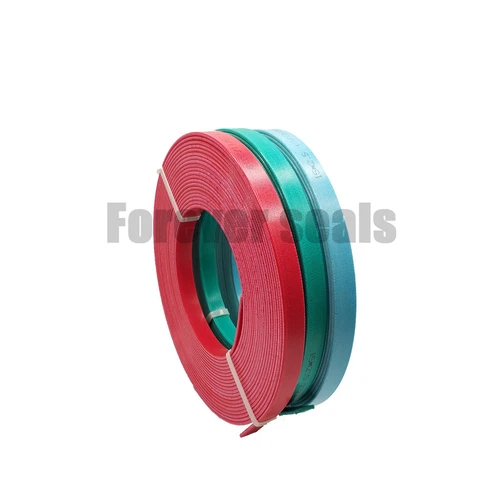

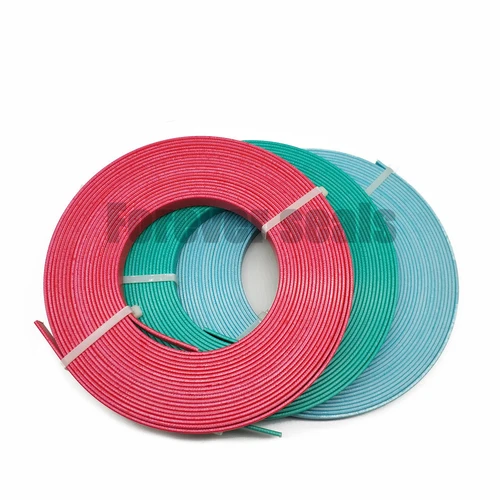

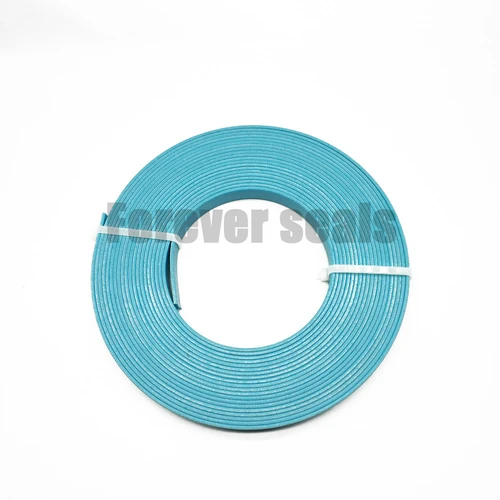

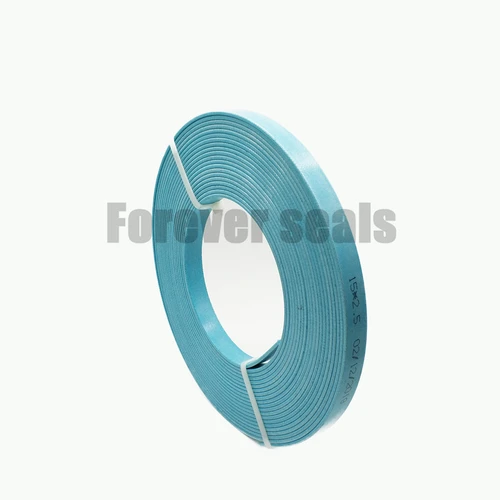

Phenolic guide strip
of fabric reinforced composite materials is used in hydraulic cylinders exposed to high loads that can occur e.g. in mobile hydraulics and presses. The high compressive strength, good sliding behaviour and the
exceptional wear resistant properties ensure a long service life.
2. Installation Recommendation
3. Standard materials
Phenolic resin, blue color
4. Working Conditions
| Working Conditions | ||||
| Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
| Custom as Required | — | -55℃ +225℃ | 15 m/s | hydraulic oil, emulsion, and water |
Piston: L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]
Rod: L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ] C = 3.14 k=0.8
5. Length of whole roll
All sizes are 10 mteres each roll.
Standard groove width
| Groove width L2 | 2.5 | 3.2 | 4 | 4.2 | 5.6 | 6 | 6.3 | 8.1 | 9.7 | 10 | 12 | 15 | 18 | 20 |
The products of various width could be provided.
Standard thickness of product
| Thickness W | 1 | 1.5 | 1.55 | 2 | 2.5 | 3 | 4 | 5 | 6 |
The products of various thickness could be provided.
6. Advantages
- Dimensionally stable and vibration absorbing
- Even distribution of high radial forces
- Good sliding and dry running properties
- High wear resistance
- Good wiping effect
- Long service life
