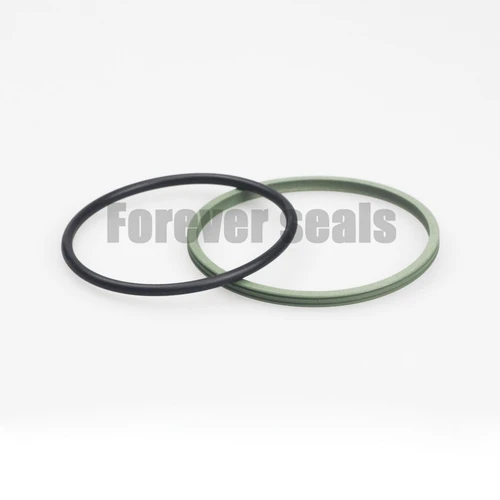

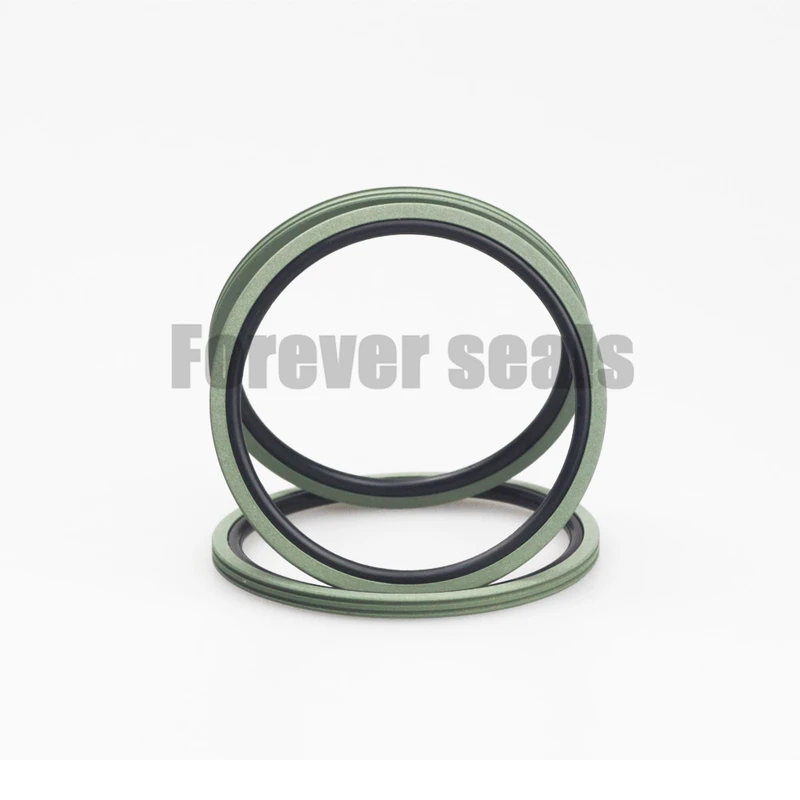

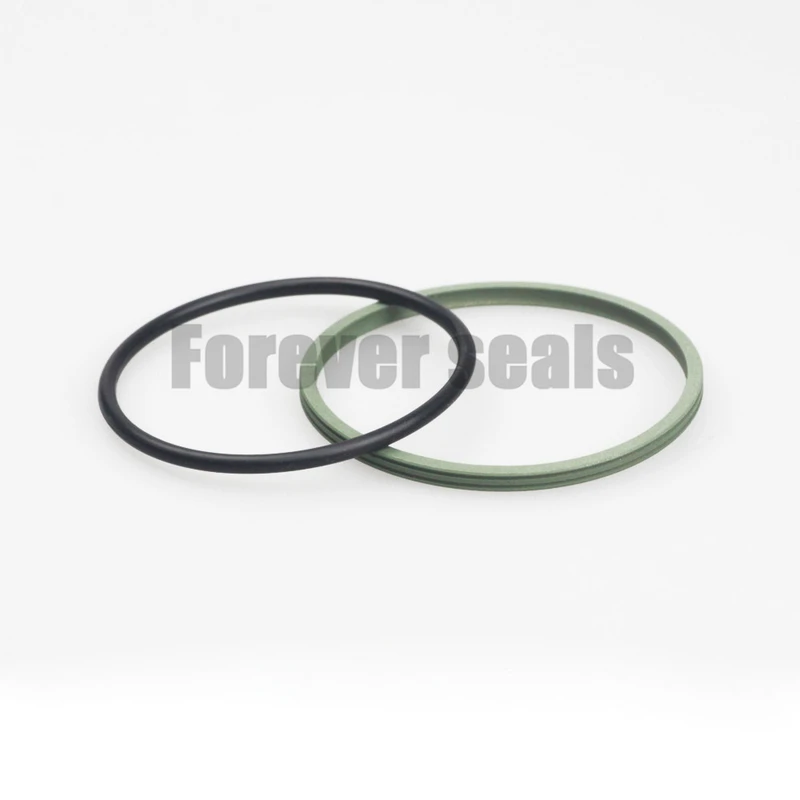

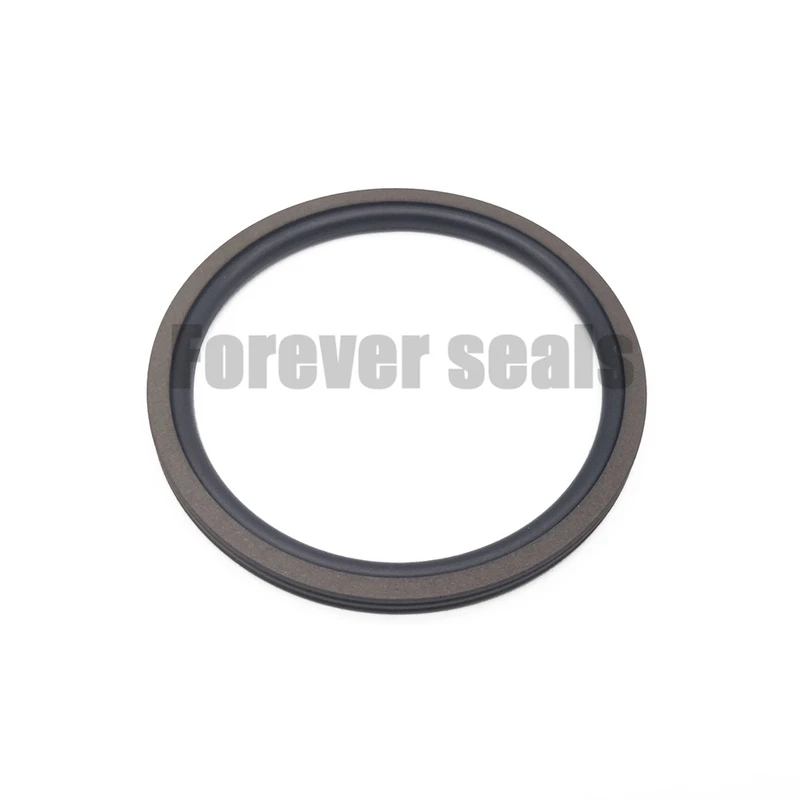

GNS - Rotary Glyd Ring

  • Temperature: -45 - +200℃

  • Pressure: 0 - 30MPa

  • Speed: 2m/s

  • Material: filled PTFE, NBR/FKM

  • Application: shaft rotary sealing

1. Description

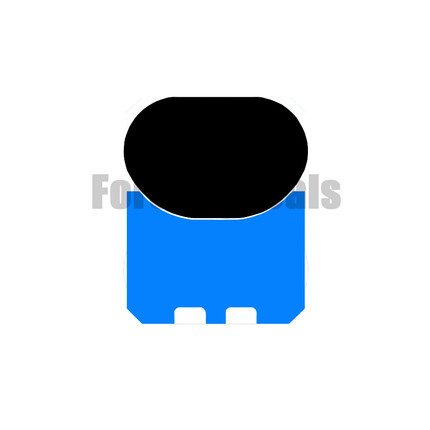

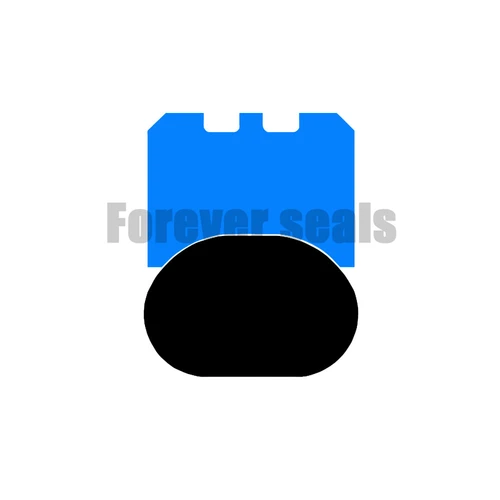

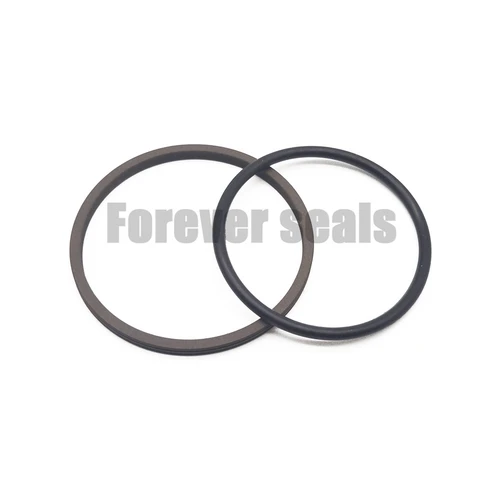

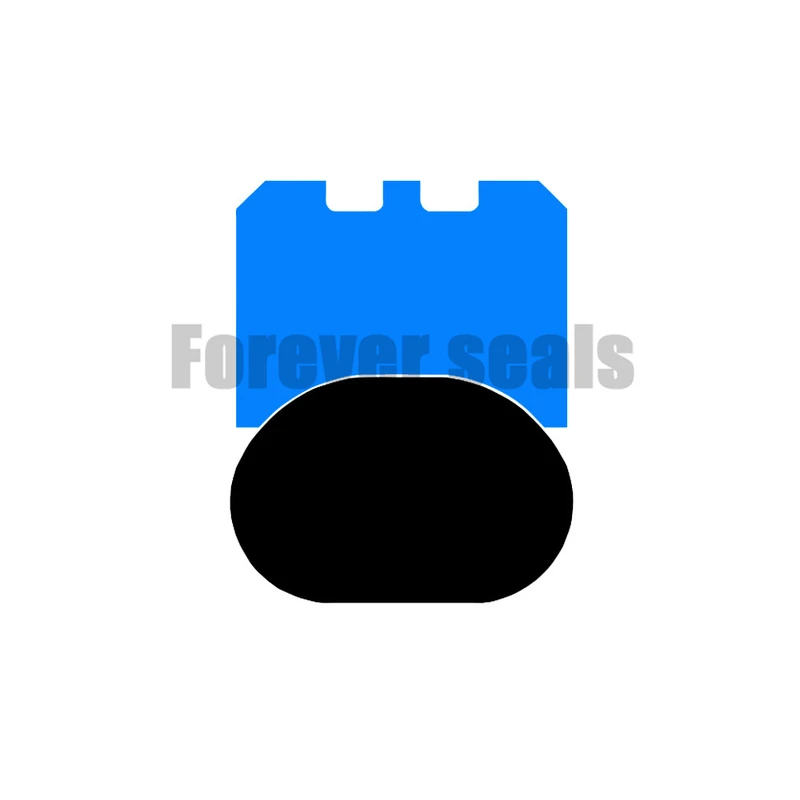

The rotary Glyd Ring is used to seal rods, shafts, axles, bores, rotary transmission leadthroughs, journals, swivels etc. with rotary or oscillating movement. The seal is double-acting and can be exposed to pressure from one, or from both sides. It consists of a seal ring of PTFE  material and is activated by an O-Ring as an elastic energizing element. The contact surface profile of the seal ring is specially designed for use under high pressures and at low sliding speeds.


2. Installation Recommendation


3. Standard materials

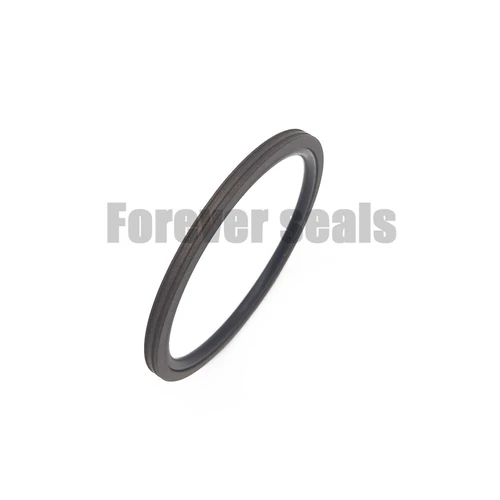

Sealing ring: filled PTFE

O-Ring: NBR / FKM


4.
