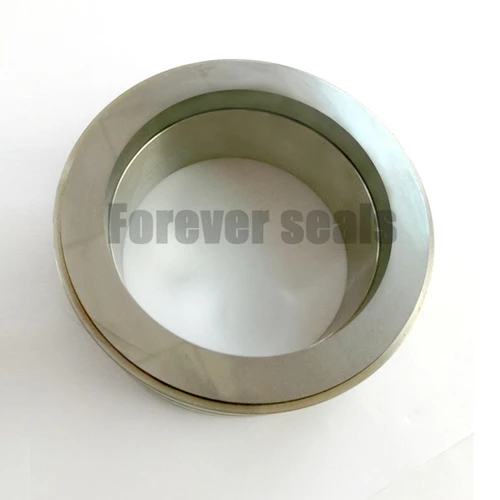

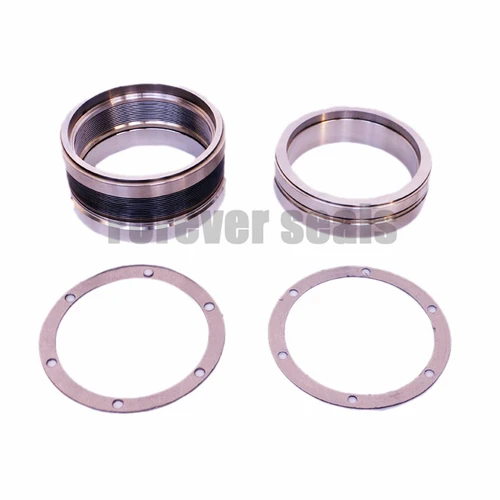

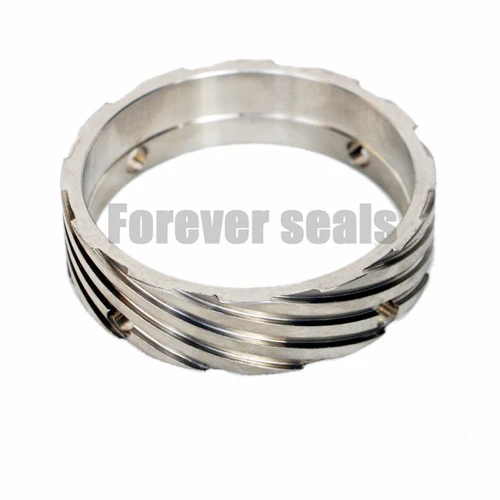

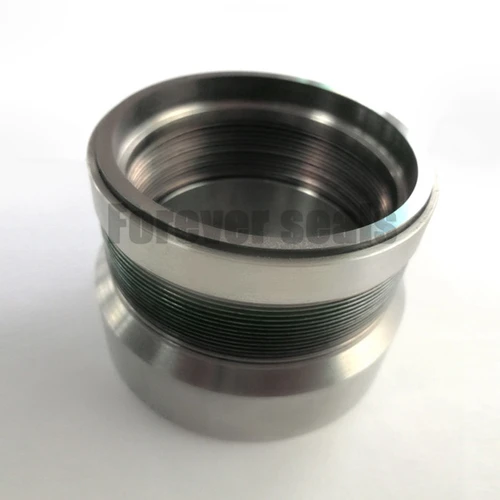

HSPBS Bellows Mechanical Seal

Mechanical seal refers to at least one pair perpendicular to the rotating axis face in the fluid pressure and compensation mechanism elasticity or magnetic force under the action of the auxiliary seal to maintain close and relative sliding formed by the device to prevent fluid leakage.

  • Satisfy API682, JB8723 standard

  • Single end seal/double end seal

  • Packaged/unpackaged

  • balanced type

  • Stationary ( Model 606, Model 604 )/Rotary ( Model 609 )

  • Applicable pressure: 0~2.0 ( single layer ) / 6.9 ( double layer ) MPa

  • Applicable speed: ≤25/50m/s

  • applicable temperature: -75~425℃

  • Applicable medium: hydrocarbon, thermosetting and viscous high temperature medium
