1. Description
GR elastic spider of Forever Seals is suitable for all hub machines. It's also the recommended elastomer inset for all applications in general engineering/hydraulics.
Material: CPU/TPU
Hardness:
Blue: 80 Shore A
Yellow: 93 Shore A
Red: 98 Shore A
Temperature: -40~+100° C
Torque: 22.4-2500NM

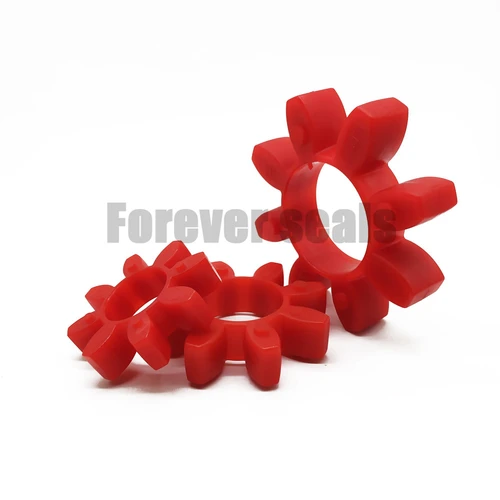

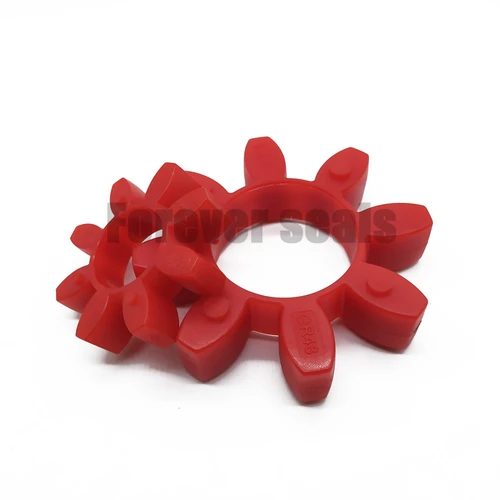

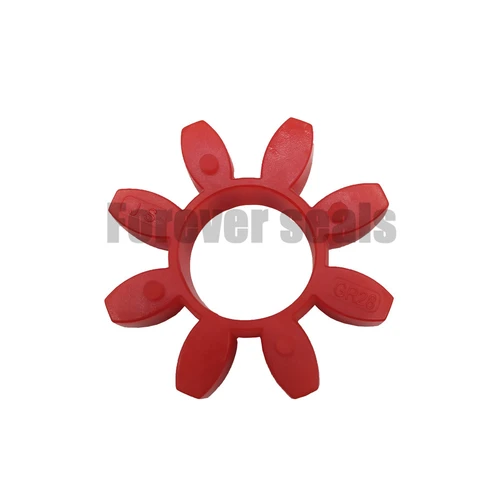

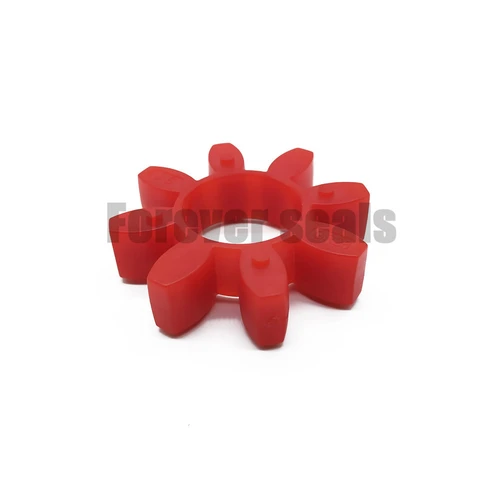

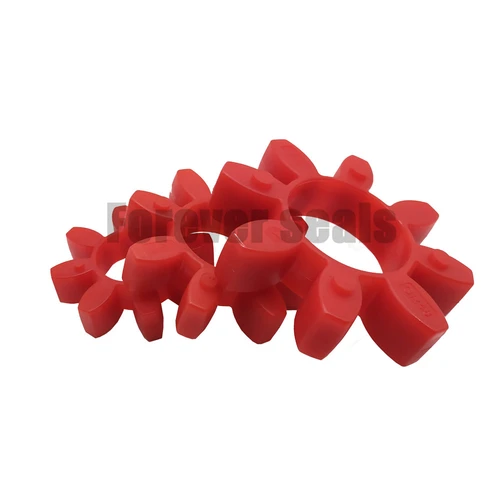

2. Product display
3. Dimensions
| TYPE | DIMENSIONS | QTY OF PETAL |
| GR-14 | 30*-*12 | 4 |
| GR-19 | 40*18*14.5 | 6 |
| GR-24 | 54*26*15.2 | 8 |
| GR-28 | 65*30*19 | 8 |
| GR-38 | 80*38*22 | 8 |
| GR-42 | 95*46*24 | 8 |
| GR-48 | 104*51*25.5 | 8 |
| GR-55 | 120*60*27 | 8 |
| GR-65 | 135*68*32 | 8 |
| GR-75 | 161*81*37 | 10 |
| GR-90 | 199*100*42 | 10 |
| GR-100 | 224*111*42 | 10 |
| GR-110 | 255*121*42 | 10 |
| GR-125 | 293*150*42 | 10 |
| GR-140 | 318*166*50 | 10 |
4. Advantages
Extremely resistance to wear, oil, ozone and ageing. Also resistant to hydrolysis(ideal for tropical climates).
Protect the drive against dynamic overload.
Good physical properties.
Wide range of application.
Failure protection.
Easy installation.
