1. Description
MT Elastic Spider of Forever Seals is suitable to large equipment and mechanical cushioing effect joint of transmission shaft.
Material: CPU/TPU
Hardness:
Blue: 80 Shore A
Yellow: 93 Shore A
Red: 98 Shore A
Temperature: -40~+100° C
Torque: 22.4-2500NM

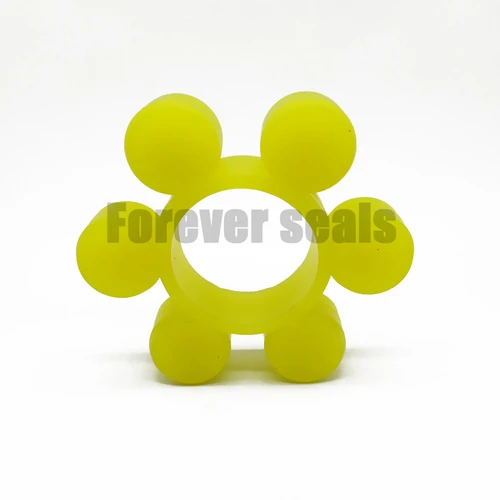

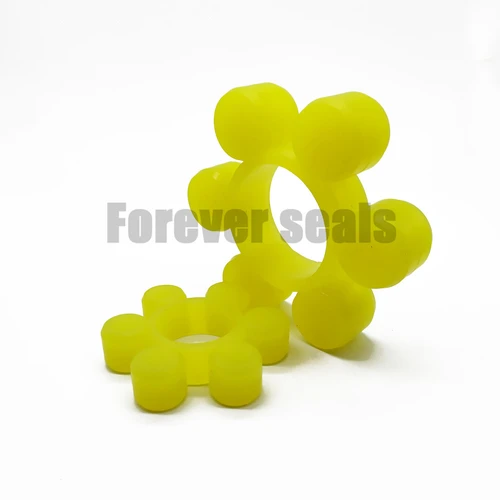

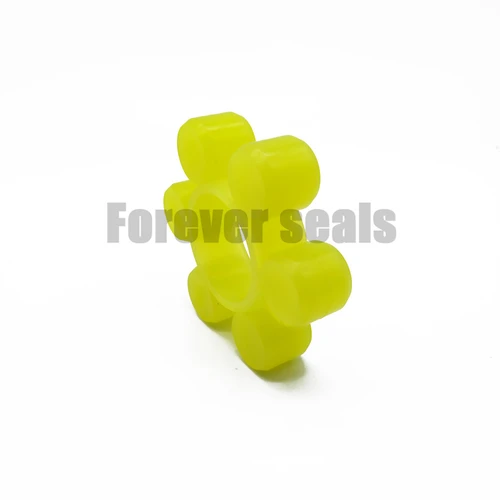

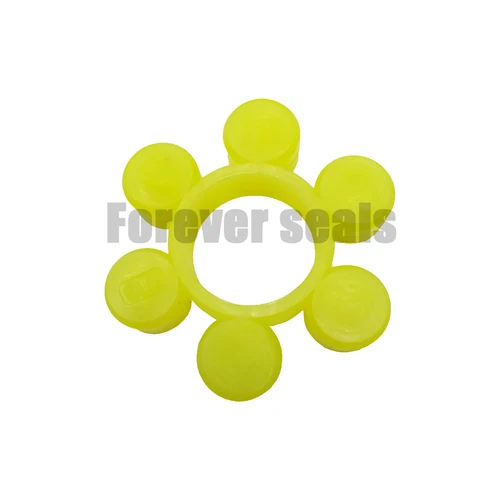

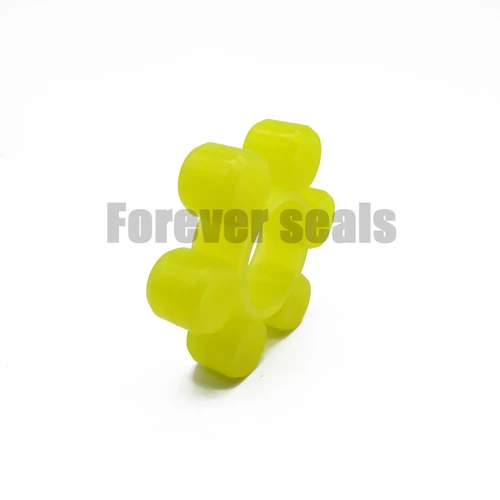

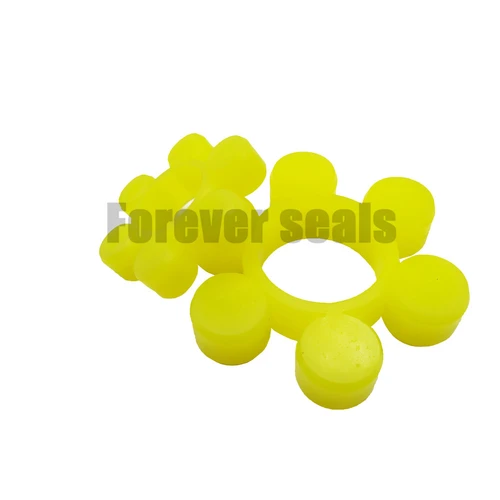

2. Product display
3. Dimensions
| TYPE | DIMENSIONS | QTY OF PETAL |
| MT1 | 48*19*12 | 4 |
| MT2 | 68*28*18 | 6 |
| MT3 | 82*34*18 | 6 |
| MT4 | 100*42*20 | 6 |
| MT5 | 122*52*25 | 6 |
| MT6 | 140*64*30 | 6 |
| MT7 | 166*90*30 | 8 |
| MT8 | 196*100*35 | 8 |
| MT9 | 225*115*35 | 10 |
| MT10 | 255*140*45 | 10 |
| MT11 | 296*170*50 | 10 |
| MT12 | 356*215*55 | 12 |
4. Advantages
Extremely resistance to wear, oil, ozone and ageing. Also resistant to hydrolysis(ideal for tropical climates).
Protect the drive against dynamic overload.
Good physical properties.
Wide range of application.
Failure protection.
Easy installation.
