1. Description

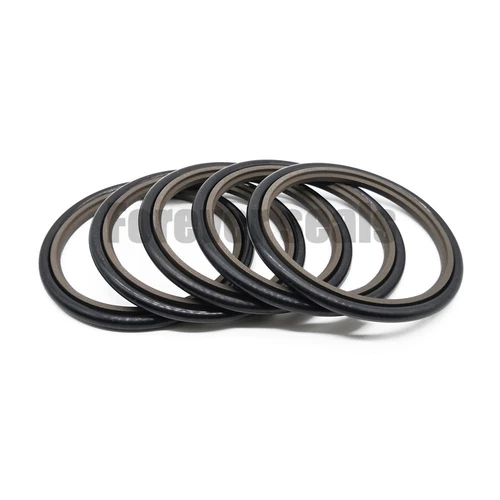

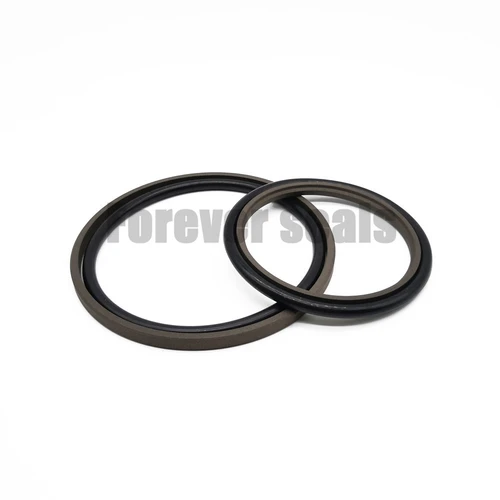

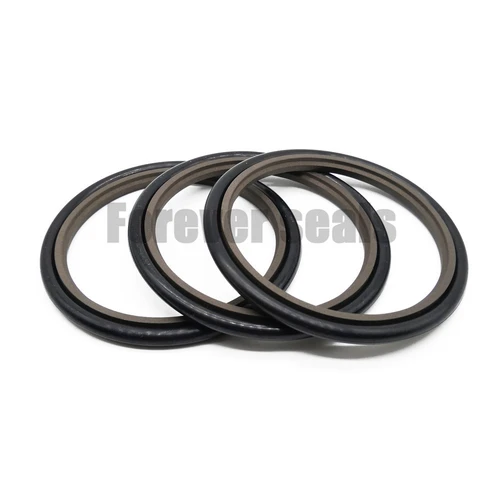

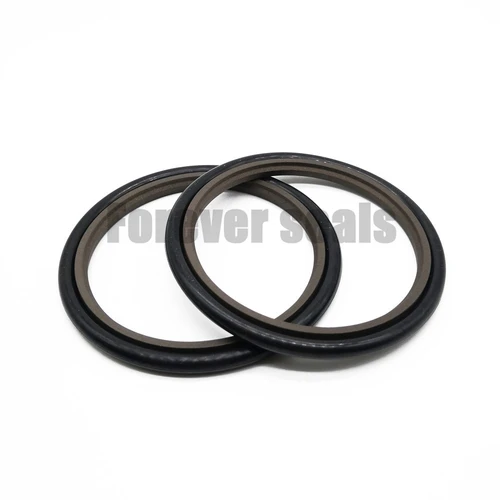

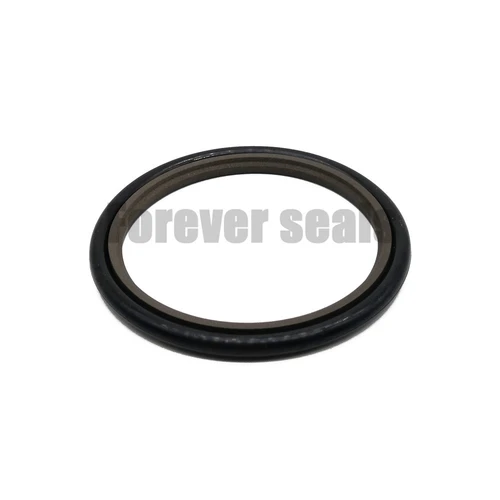

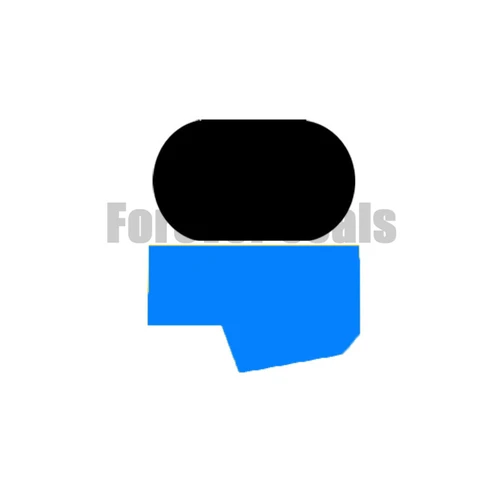

A single-acting O-Ring energized rod seal for dynamic applications,step seals can be installed in closed grooves including grooves to ISO 7425. It offers high sealing efficiency, low friction with no stick-slip, minimal break out force and high wear resistance. Optimum sealing characteristics are achieved by installing in a tandem step seals arrangement together with a double-acting scraper. Available in bronze filled PTFE materials.
2. Installation Recommendation
3. Installation dimensions - Standard recommendations
Rod Diameter dN h9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | D1 H9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
3-7.9 | 8-18.9 | - | dN+4.9 | 2.2 | 0.4 | 0.3 | 0.20 | 0.15 | 1.78 |
8-18.9 | 19-37.9 | - | dN+7.3 | 3.2 | 0.6 | 0.4 | 0.25 | 0.15 | 2.62 |
19-37.9 | 38-199.9 | 8-18.9 | dN+10.7 | 4.2 | 1.0 | 0.4 | 0.25 | 0.20 | 3.53 |
38-199.9 | 200-255.9 | 19-37.9 | dN+15.1 | 6.3 | 1.3 | 0.5 | 0.30 | 0.20 | 5.33 |
200-255.9 | 256-649.9 | 38-199.9 | dN+20.5 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 7.00 |
256-649.9 | 650-999.9 | 200-255.9 | dN+24.0 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 7.00 |
650-999.9 | ≥1000.0 | 256-649.9 | dN+27.3 | 9.5 | 2.5 | 0.7 | 0.50 | 0.30 | 8.40 |
≥1000.0 | - | 650-999.9 | dN+38.0 | 13.8 | 3.0 | 1.0 | 0.70 | 0.60 | 12.00 |
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Dimensions
| Rod Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimensions |
| dN h9 | D1 H9 | L1+0.2 | ||
| 4 | 8.9 | 2.2 | GSJ4*8.9*2.2 | 5.28*1.78 |
| 5 | 9.9 | 2.2 | GSJ5*9.9*2.2 | 6.75*1.78 |
| 6 | 10.9 | 2.2 | GSJ6*10.9*2.2 | 7.65*1.78 |
| 8 | 12.9 | 2.2 | GSJ8*12.9*2.2 | 9.25*1.78 |
| 8 | 15.3 | 3.2 | GSJ8*15.3*3.2 | 10.77*2.62 |
| 10 | 14.9 | 2.2 | GSJ10*14.9*2.2 | 11.8*1.78 |
| 10 | 17.3 | 3.2 | GSJ10*17.3*3.2 | 12.37*2.62 |
| 12 | 16.9 | 2.2 | GSJ12*16.9*2.2 | 13.3*1.78 |
| 12 | 19.3 | 3.2 | GSJ12*19.3*3.2 | 13.94*2.62 |
| 14 | 18.9 | 2.2 | GSJ14*18.9*2.2 | 15.6*1.78 |
| 14 | 21.3 | 3.2 | GSJ14*21.3*3.2 | 15.54*2.62 |
| 15 | 19.9 | 2.2 | GSJ15*19.9*2.2 | 16.67*1.78 |
| 15 | 22.3 | 3.2 | GSJ15*22.3*3.2 | 17.12*2.62 |
| 16 | 20.9 | 2.2 | GSJ16*20.9*2.2 | 17.17*1.78 |
| 16 | 23.3 | 3.2 | GSJ16*23.3*3.2 | 18.72*2.62 |
| 18 | 22.9 | 2.2 | GSJ18*22.9*2.2 | 18.77*1.78 |
| 18 | 25.3 | 3.2 | GSJ18*25.3*3.2 | 20.29*2.62 |
| 19 | 29.7 | 4.2 | GSJ19*29.7*4.2 | 23.39*3.53 |
| 20 | 27.3 | 3.2 | GSJ20*27.3*3.2 | 21.89*2.62 |
| 20 | 30.7 | 4.2 | GSJ20*30.7*4.2 | 23.39*3.53 |
| 22 | 29.3 | 3.2 | GSJ22*29.3*3.2 | 23.47*2.62 |
| 22 | 32.7 | 4.2 | GSJ22*32.7*4.2 | 26.57*3.53 |
| 25 | 32.3 | 3.2 | GSJ25*32.3*3.2 | 26.64*2.62 |
| 25 | 35.7 | 4.2 | GSJ25*35.7*4.2 | 29.74*3.53 |
| 28 | 38.7 | 4.2 | GSJ28*38.7*4.2 | 31.34*3.53 |
| 30 | 40.7 | 4.2 | GSJ30*40.7*4.2 | 34.52*3.53 |
| 32 | 42.7 | 4.2 | GSJ32*42.7*4.2 | 36.09*3.53 |
| 35 | 45.7 | 4.2 | GSJ35*45.7*4.2 | 37.69*3.53 |
| 36 | 46.7 | 4.2 | GSJ36*46.7*4.2 | 40.87*3.53 |
| 38 | 53.1 | 6.3 | GSJ38*53.1*6.3 | 43.82*5.33 |
| 40 | 50.7 | 4.2 | GSJ40*50.7*4.2 | 44.04*3.53 |
| 40 | 55.1 | 6.3 | GSJ40*55.1*6.3 | 43.82*5.33 |
| 42 | 57.1 | 6.3 | GSJ42*57.1*6.3 | 46.99*5.33 |
| 45 | 55.7 | 4.2 | GSJ45*55.7*4.2 | 47.22*3.53 |
| 45 | 60.1 | 6.3 | GSJ45*60.1*6.3 | 50.17*5.33 |
| 50 | 60.7 | 4.2 | GSJ50*60.7*4.2 | 53.57*3.53 |
| 50 | 65.1 | 6.3 | GSJ50*65.1*6.3 | 56.52*5.33 |
| 55 | 70.1 | 6.3 | GSJ55*70.1*6.3 | 59.69*5.33 |
| 56 | 66.7 | 4.2 | GSJ56*66.7*4.2 | 59.92*3.53 |
| 56 | 71.1 | 6.3 | GSJ56*71.1*6.3 | 59.69*5.33 |
| 56 | 76.5 | 8.1 | GSJ56*76.5*8.1 | 62.87*6.99 |
| 60 | 75.1 | 6.3 | GSJ60*75.1*6.3 | 66.04*5.33 |
| 63 | 73.7 | 4.2 | GSJ63*73.7*4.2 | 66.27*3.53 |
| 63 | 78.1 | 6.3 | GSJ63*78.1*6.3 | 69.22*5.33 |
| 65 | 75.7 | 4.2 | GSJ65*75.7*4.2 | 69.44*3.53 |
| 65 | 80.1 | 6.3 | GSJ65*80.1*6.3 | 69.22*5.33 |
| 70 | 80.7 | 4.2 | GSJ70*80.7*4.2 | 72.62*3.53 |
| 70 | 85.1 | 6.3 | GSJ70*85.1*6.3 | 75.57*5.33 |
| 70 | 90.5 | 8.1 | GSJ70*90.5*8.1 | 78.74*6.99 |
| 75 | 85.7 | 4.2 | GSJ75*85.7*4.2 | 78.97*3.53 |
| 75 | 90.1 | 6.3 | GSJ75*90.1*6.3 | 78.74*5.33 |
| 80 | 90.7 | 4.2 | GSJ80*90.7*4.2 | 82.14*3.53 |
| 80 | 95.1 | 6.3 | GSJ80*95.1*6.3 | 85.09*5.33 |
| 80 | 100.5 | 8.1 | GSJ80*100.5*8.1 | 88.27*6.99 |
| 85 | 95.7 | 4.2 | GSJ85*95.7*4.2 | 88.49*3.53 |
| 85 | 100.1 | 6.3 | GSJ85*100.1*6.3 | 91.44*5.33 |
| 85 | 105.5 | 8.1 | GSJ85*105.5*8.1 | 91.44*6.99 |
| 90 | 100.7 | 4.2 | GSJ90*100.7*4.2 | 94.84*3.53 |
| 90 | 105.1 | 6.3 | GSJ90*105.1*6.3 | 95.5*5.33 |
| 90 | 110.5 | 8.1 | GSJ90*110.5*8.1 | 97.79*6.99 |
| 95 | 105.7 | 4.2 | GSJ95*105.7*4.2 | 98.02*3.53 |
| 95 | 110.1 | 6.3 | GSJ95*110.1*6.3 | 100.97*5.33 |
| 100 | 110.7 | 4.2 | GSJ100*110.7*4.2 | 104.37*3.53 |
| 100 | 115.1 | 6.3 | GSJ100*115.1*6.3 | 104.14*5.33 |
| 100 | 120.5 | 8.1 | GSJ100*120.5*8.1 | 107.32*6.99 |
| 105 | 120.1 | 6.3 | GSJ105*120.1*6.3 | 110.49*5.33 |
| 105 | 125.5 | 8.1 | GSJ105*125.5*8.1 | 113.67*6.99 |
| 110 | 120.7 | 4.2 | GSJ110*120.7*4.2 | 113.89*3.53 |
| 110 | 125.1 | 6.3 | GSJ110*125.1*6.3 | 113.67*5.33 |
| 110 | 130.5 | 8.1 | GSJ110*130.5*8.1 | 116.84*6.99 |
| 115 | 130.1 | 6.3 | GSJ115*130.1*6.3 | 120.02*5.33 |
| 120 | 135.1 | 6.3 | GSJ120*135.1*6.3 | 126.37*5.33 |
| 120 | 140.5 | 8.1 | GSJ120*140.5*8.1 | 126.37*6.99 |
| 125 | 140.1 | 6.3 | GSJ125*140.1*6.3 | 129.54*5.33 |
| 125 | 145.5 | 8.1 | GSJ125*145.5*8.1 | 132.72*6.99 |
| 130 | 145.1 | 6.3 | GSJ130*145.1*6.3 | 135.89*5.33 |
| 130 | 150.5 | 8.1 | GSJ130*150.5*8.1 | 135.89*6.99 |
| 140 | 150.7 | 4.2 | GSJ140*150.7*4.2 | 142.47*3.53 |
| 140 | 155.1 | 6.3 | GSJ140*155.1*6.3 | 145.42*5.33 |
| 140 | 160.5 | 8.1 | GSJ140*160.5*8.1 | 148.59*6.99 |
| 145 | 160.1 | 6.3 | GSJ145*160.1*6.3 | 148.59*5.33 |
| 145 | 165.5 | 8.1 | GSJ145*165.5*8.1 | 151.77*6.99 |
| 150 | 165.1 | 6.3 | GSJ150*165.1*6.3 | 155*5.33 |
| 150 | 170.5 | 8.1 | GSJ150*170.5*8.1 | 158.12*6.99 |
| 160 | 175.1 | 6.3 | GSJ160*175.1*6.3 | 164.47*5.33 |
| 160 | 180.5 | 8.1 | GSJ160*180.5*8.1 | 164.47*6.99 |
| 165 | 180.1 | 6.3 | GSJ165*180.1*6.3 | 170.82*5.33 |
| 170 | 185.1 | 6.3 | GSJ170*185.1*6.3 | 175*5.33 |
| 170 | 190.5 | 8.1 | GSJ170*190.5*8.1 | 177.17*6.99 |
| 180 | 195.1 | 6.3 | GSJ180*195.1*6.3 | 183.32*5.33 |
| 180 | 200.5 | 8.1 | GSJ180*200.5*8.1 | 186.02*6.99 |
| 190 | 205.1 | 6.3 | GSJ190*205.1*6.3 | 196.22*5.33 |
| 200 | 215.1 | 6.3 | GSJ200*215.1*6.3 | 205*5.33 |
| 200 | 220.5 | 8.1 | GSJ200*220.5*8.1 | 206*6.99 |
| 210 | 230.5 | 8.1 | GSJ210*230.5*8.1 | 215.27*6.99 |
| 220 | 240.5 | 8.1 | GSJ220*240.5*8.1 | 227.97*6.99 |
| 230 | 245.1 | 6.3 | GSJ230*245.1*6.3 | 234.32*5.66 |
| 230 | 250.5 | 8.1 | GSJ230*250.5*8.1 | 236*6.99 |
| 240 | 260.5 | 8.1 | GSJ240*260.5*8.1 | 243*6.99 |
| 250 | 270.5 | 8.1 | GSJ250*270.5*8.1 | 253.37*6.99 |
| 256 | 280 | 8.1 | GSJ256*280*8.1 | 266.07*6.99 |
| 260 | 284 | 8.1 | GSJ260*284*8.1 | 266.07*6.99 |
| 270 | 294 | 8.1 | GSJ270*294*8.1 | 278.77*6.99 |
| 280 | 304 | 8.1 | GSJ280*304*8.1 | 291.47*6.99 |
| 290 | 314 | 8.1 | GSJ290*314*8.1 | 300*6.99 |
| 300 | 324 | 8.1 | GSJ300*324*8.1 | 307*6.99 |
| 320 | 344 | 8.1 | GSJ320*344*8.1 | 329.57*6.99 |
| 330 | 354 | 8.1 | GSJ330*354*8.1 | 355*6.99 |
| 340 | 364 | 8.1 | GSJ340*364*8.1 | 345*6.99 |
| 350 | 374 | 8.1 | GSJ350*374*8.1 | 354.97*6.99 |
| 360 | 384 | 8.1 | GSJ360*384*8.1 | 367.67*6.99 |
| 370 | 394 | 8.1 | GSJ370*394*8.1 | 380.37*6.99 |
| 380 | 404 | 8.1 | GSJ380*404*8.1 | 387*6.99 |
| 390 | 414 | 8.1 | GSJ390*414*8.1 | 400*6.99 |
| 400 | 424 | 8.1 | GSJ400*424*8.1 | 405.26*6.99 |
| 410 | 434 | 8.1 | GSJ410*434*8.1 | 417.96*6.99 |
| 420 | 444 | 8.1 | GSJ420*444*8.1 | 430.66*6.99 |
| 430 | 454 | 8.1 | GSJ430*454*8.1 | 437*6.99 |
| 440 | 464 | 8.1 | GSJ440*464*8.1 | 450*6.99 |
| 450 | 474 | 8.1 | GSJ450*474*8.1 | 456.06*6.99 |
| 460 | 484 | 8.1 | GSJ460*484*8.1 | 468.76*6.99 |
| 480 | 504 | 8.1 | GSJ480*504*8.1 | 487*6.99 |
| 490 | 514 | 8.1 | GSJ490*514*8.1 | 500*6.99 |
| 500 | 524 | 8.1 | GSJ500*524*8.1 | 506.87*6.99 |
| 520 | 544 | 8.1 | GSJ520*544*8.1 | 532.26*6.99 |
| 540 | 564 | 8.1 | GSJ540*564*8.1 | 552.66*6.99 |
| 550 | 574 | 8.1 | GSJ550*574*8.1 | 560*6.99 |
| 580 | 604 | 8.1 | GSJ580*604*8.1 | 582.68*6.99 |
| 600 | 624 | 8.1 | GSJ600*624*8.1 | 608.08*6.99 |
| 620 | 644 | 8.1 | GSJ620*644*8.1 | 633.48*6.99 |
| 630 | 654 | 8.1 | GSJ630*654*8.1 | 640*6.99 |
| 640 | 664 | 8.1 | GSJ640*664*8.1 | 658.88*6.99 |
| 650 | 677.3 | 9.5 | GSJ650*677.3*9.5 | 660*8.4 |
| 660 | 687.3 | 9.5 | GSJ660*687.3*9.5 | 670*8.4 |
| 680 | 707.3 | 9.5 | GSJ680*707.3*9.5 | 690*8.4 |
| 685 | 712.3 | 9.5 | GSJ685*712.3*9.5 | 695*8.4 |
| 700 | 727.3 | 9.5 | GSJ700*727.3*9.5 | 710*8.4 |
| 710 | 737.3 | 9.5 | GSJ710*737.3*9.5 | 720*8.4 |
| 730 | 757.3 | 9.5 | GSJ730*757.3*9.5 | 740*8.4 |
| 750 | 777.3 | 9.5 | GSJ750*777.3*9.5 | 760*8.4 |
| 760 | 787.3 | 9.5 | GSJ760*787.3*9.5 | 770*8.4 |
| 780 | 807.3 | 9.5 | GSJ780*807.3*9.5 | 790*8.4 |
| 790 | 817.3 | 9.5 | GSJ790*817.3*9.5 | 800*8.4 |
| 800 | 827.3 | 9.5 | GSJ800*827.3*9.5 | 810*8.4 |
| 810 | 837.3 | 9.5 | GSJ810*837.3*9.5 | 823*8.4 |
| 820 | 847.3 | 9.5 | GSJ820*847.3*9.5 | 830*8.4 |
| 830 | 857.3 | 9.5 | GSJ830*857.3*9.5 | 843*8.4 |
| 850 | 877.3 | 9.5 | GSJ850*877.3*9.5 | 860*8.4 |
| 870 | 897.3 | 9.5 | GSJ870*897.3*9.5 | 883*8.4 |
| 880 | 907.3 | 9.5 | GSJ880*907.3*9.5 | 890*8.4 |
| 890 | 917.3 | 9.5 | GSJ890*917.3*9.5 | 903*8.4 |
| 900 | 927.3 | 9.5 | GSJ900*927.3*9.5 | 910*8.4 |
| 930 | 957.3 | 9.5 | GSJ930*957.3*9.5 | 943*8.4 |
| 950 | 977.3 | 9.5 | GSJ950*977.3*9.5 | 960*8.4 |
| 1000 | 1027.3 | 9.5 | GSJ1000*1027.3*9.5 | 1000*8.4 |
| 1000 | 1038 | 13.8 | GSJ1000*1038*13.8 | 1016*12 |
