TC Oil Seal

TC spring loaded double lip oil seals are used for oil or grease retention and light dust and fluid exclusion. Various OD case designs available to suit application.

Temperature: -70 - +320℃

Material: NBR, FKM, VMQ, FVMQ, EPDM, ACM, HNBR, FFKM

Performance: High temperature resistance, wear resistance, corrosion resistance, aging resistance and acid and alkali resistance

Application: Automotive, machinery, electrical appliances, cylinder, bearing, pump, water pipe, valve, roller, chemical pipeline

pdf download

Description

1. Description

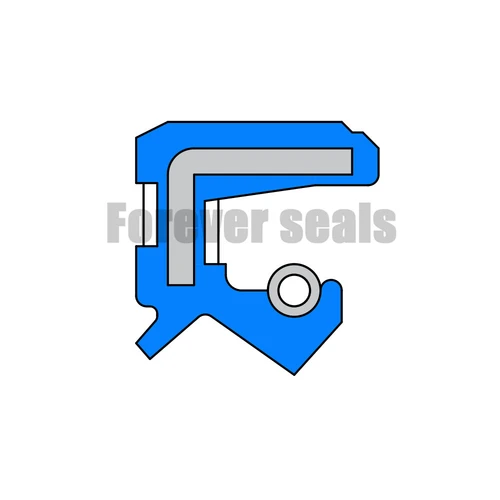

TC type oil seal is the most commonly used form of oil seal in modern industry. TC is an oil seal with an inner skeleton and a double lip mouth. In some places, it is also called a lip seal.The main lip of the double lip skeleton oil seal is used to prevent oil, and the second lip is used to prevent dust.


2. Materials

NBR (Nitrile Butadiene Rubber)

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

FKM (fluorinated rubber)

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

VMQ (silicone rubber: methyl vinyl polysiloxane)

This FVMQ-based rubber is very often used in fuel systems.

FVMQ (fluorosilicone rubber)

The FVMQ has mechanical and physical properties that are very similar to those of the VMQ. However, the FVMQ offers better resistance to fuels and mineral oils. However, resistance to hot air is not as good as that of the VMQ.

EPDM (Ethylene Propylene Diene Monomer rubber)

As an Ethylene Propylene Diene Monomer copolymer, EPDM is commonly used for hot water taps, cooling systems, brake systems, dishwashers and washing machines.

ACM (Polyacrylate)

Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.

HNBR (Hydrogenated Nitrile Butadiene Rubber)

This HNBR-based rubber is obtained through selective hydrogenation of the NBR's butadiene groups. It is commonly used for power-assisted steering and for air conditioning.

FFKM (perfluorinated rubber)

FFKM has the best characteristics for resistance to high temperatures, with an excellent chemical inertia. This FKM-based rubber is very often used for high-temperature hydraulic and pneumatic systems, industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

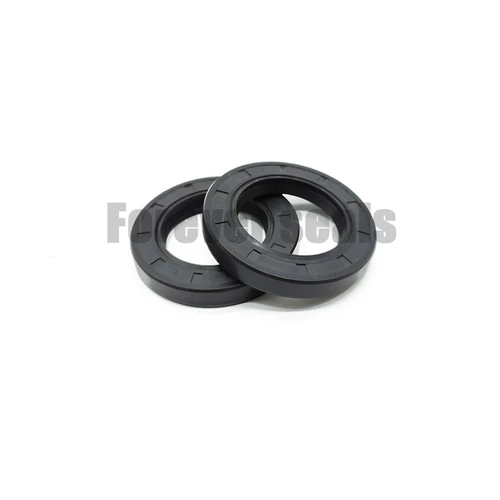

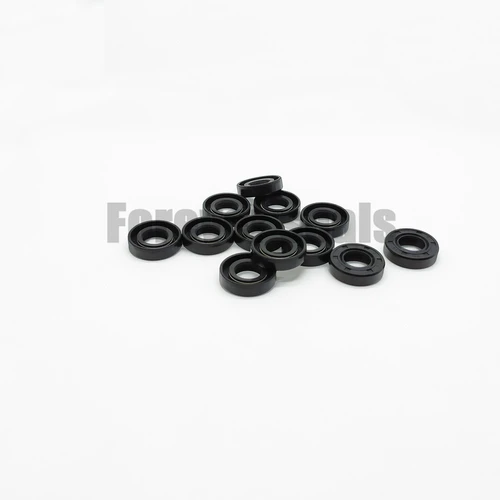

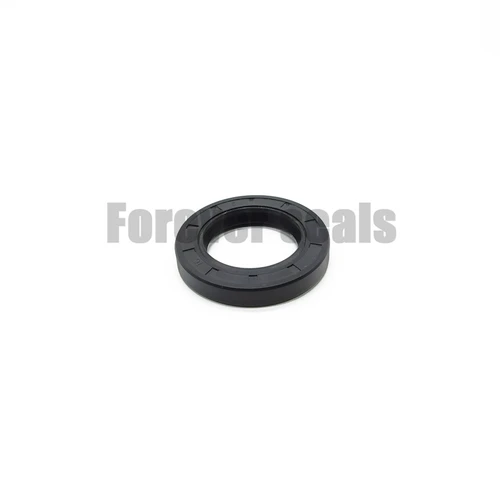

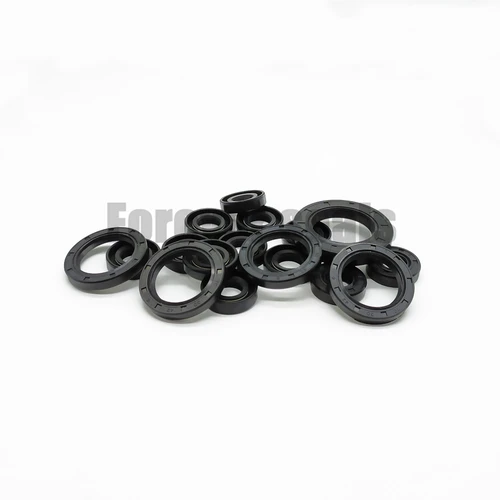

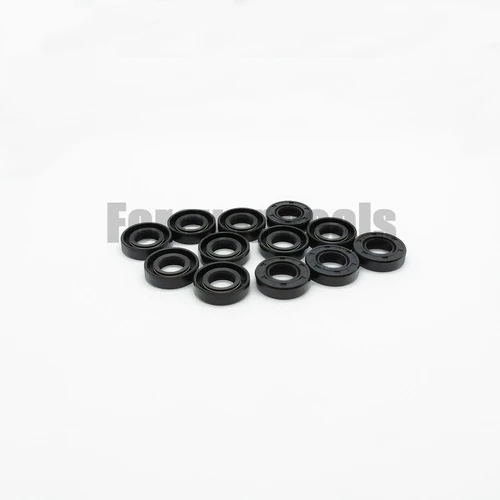

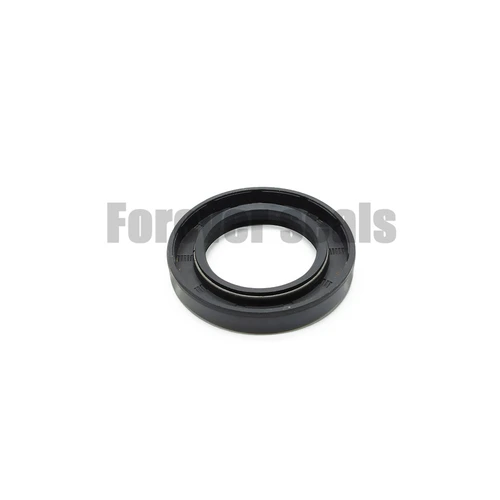

3. Product Display

4. Advantages

Very good static sealing
Very good thermal expansion compensation
Greater roughness is allowed in the housing
Reduced risk of corrosion
Sealing for low and high viscosity fluids
Modern primary sealing lip with low radial forces
Protection against undesirable air contaminants

5. Dimensions

Inner Diam.	Outer Diam.	Height	Order No.	Inner Diam.	Outer Diam.	Height	Order No.
7	22	8	TC7228	45	72	8	TC45728
8	14	4.5	TC8144.5	45	72	10	TC457210
8	14	5	TC8145	45	72	12	TC457212
8	15	5	TC8155	45	75	8	TC45758
8	15	8	TC8158	45	75	10	TC457510
8	16	8	TC8168	45	75	12	TC457512
8	22	7	TC8227	45	76	9	TC45769
8	22	8	TC8228	45	78	12	TC457812
9	14	5	TC9145	45	80	5	TC45805
9	22	7	TC9227	45	80	8	TC45808
9	26	7	TC9267	45	80	10	TC458010
10	17	5	TC10175	45	80	12	TC458012
10	18	7	TC10187	45	82	12	TC458212
10	19	5	TC10195	45	85	10	TC458510
10	20	5	TC10205	45	85	12	TC458512
10	20	7	TC10207	45	90	10	TC459010
10	20	8	TC10208	45	90	12	TC459012
10	22	5	TC10225	45	100	12	TC4510012
10	22	8	TC10228	46	64	8	TC46648
10	25	5	TC10255	47	65	12	TC476512
10	25	7	TC10257	47	72	8	TC47728
10	25	8	TC10258	47	84	12	TC478412
10	25	10	TC102510	48	60	10	TC486010
10	26	7	TC10267	48	62	8	TC48628
10	26	8	TC10268	48	62	10	TC486210
12	19	5	TC12195	48	62	12	TC486212
12	20	5	TC12205	48	65	8	TC48658
12	21	5	TC12215	48	65	9	TC48659
12	21	7	TC12217	48	65	10	TC486510
12	22	5	TC12225	48	65	12	TC486512
12	22	6	TC12226	48	70	10	TC487010
12	22	7	TC12227	48	70	12	TC487012
12	22	8	TC12228	48	72	10	TC487210
12	24	7	TC12247	48	72	12	TC487212
12	25	5	TC12255	48	74	12	TC487412
12	25	8	TC12258	48	75	12	TC487512
12	25	10	TC122510	48	78	12	TC487812
12	26	7	TC12267	48	80	10	TC488010
12	26	8	TC12268	48	80	12	TC488012
12	28	7	TC12287	50	62	8	TC50628
12	28	8	TC12288	50	62	10	TC506210
12	30	7	TC12307	50	62	12	TC506212
12	32	5	TC12325	50	63	8	TC50638
12	32	7	TC12327	50	65	8	TC50658
12	32	10	TC123210	50	65	10	TC506510
14	22	5	TC14225	50	65	12	TC506512
14	24	7	TC14247	50	66	9	TC50669
14	25	7	TC14257	50	68	8	TC50688
14	27	7	TC14277	50	68	10	TC506810
14	28	5	TC14285	50	68	12	TC506812
14	28	7	TC14287	50	70	5	TC50705
14	28	8	TC14288	50	70	8	TC50708
14	30	7	TC14307	50	70	10	TC507010
14	30	8	TC14308	50	70	12	TC507012
14	30	10	TC143010	50	72	5	TC50725
14	35	7	TC14357	50	72	7	TC50727
14	35	8	TC14358	50	72	8	TC50728
14	35	10	TC143510	50	72	10	TC507210
15	24	7	TC15247	50	72	12	TC507212
15	25	5	TC15255	50	73	12	TC507312
15	25	7	TC15257	50	75	8	TC50758
15	26	7	TC15267	50	75	10	TC507510
15	28	5	TC15285	50	75	12	TC507512
15	28	7	TC15287	50	78	12	TC507812
15	30	5	TC15305	50	80	5	TC50805
15	30	7	TC15307	50	80	8	TC50808
15	30	8	TC15308	50	80	10	TC508010
15	30	10	TC153010	50	80	12	TC508012
15	32	5	TC15325	50	82	12	TC508212
15	32	7	TC15327	50	85	8	TC50858
15	35	5	TC15355	50	85	10	TC508510
15	35	7	TC15357	50	85	12	TC508512
15	35	10	TC153510	50	90	10	TC509010
15	40	10	TC154010	50	90	12	TC509012
15	42	7	TC15427	50	95	12	TC509512
16	24	5	TC16245	50	100	10	TC5010010
16	26	7	TC16267	50	100	12	TC5010012
16	26	8	TC16268	50	110	12	TC5011012
16	28	5	TC16285	51	76	12	TC517612
16	28	7	TC16287	52	65	10	TC526510
16	28	8	TC16288	52	70	8	TC52708
16	30	7	TC16307	52	70	10	TC527010
16	30	8	TC16308	52	70	12	TC527012
16	30	10	TC163010	52	72	8	TC52728
16	32	7	TC16327	52	72	10	TC527210
16	35	7	TC16357	52	72	12	TC527212
16	35	8	TC16358	52	75	8	TC52758
16	35	10	TC163510	52	75	10	TC527510
16	40	10	TC164010	52	75	12	TC527512
17	25	7	TC17257	52	80	8	TC52808
17	28	7	TC17287	52	80	10	TC528010
17	30	5	TC17305	52	80	12	TC528012
17	30	7	TC17307	52	88	8	TC52888
17	30	8	TC17308	53	63	10	TC536310
17	30	10	TC173010	53	72	10	TC537210
17	32	5	TC17325	53	75	12	TC537512
17	32	7	TC17327	53	80	10	TC538010
17	35	7	TC17357	53	80	12	TC538012
17	35	8	TC17358	54	70	12	TC547012
17	35	10	TC173510	54	75	10	TC547510
17	40	7	TC17407	55	70	8	TC55708
17	40	8	TC17408	55	70	10	TC557010
17	40	10	TC174010	55	70	12	TC557012
17	47	10	TC174710	55	72	8	TC55728
18	28	5	TC18285	55	72	10	TC557210
18	28	7	TC18287	55	72	12	TC557212
18	28	7.5	TC18287.5	55	74	10	TC557410
18	30	7	TC18307	55	75	8	TC55758
18	30	8	TC18308	55	75	10	TC557510
18	30	10	TC183010	55	75	12	TC557512
18	32	5	TC18325	55	76	12	TC557612
18	32	7	TC18327	55	78	8	TC55788
18	35	8	TC18358	55	78	12	TC557812
18	35	10	TC183510	55	80	8	TC55808
18	40	8	TC18408	55	80	10	TC558010
18	40	10	TC184010	55	80	12	TC558012
18	45	10	TC184510	55	82	12	TC558212
18	47	10	TC184710	55	85	8	TC55858
19	28	7	TC19287	55	85	10	TC558510
19	30	7	TC19307	55	85	12	TC558512
19	30	10	TC193010	55	90	8	TC55908
19	32	7	TC19327	55	90	10	TC559010
19	32	10	TC193210	55	90	12	TC559012
19	35	7	TC19357	55	95	12	TC559512
19	35	10	TC193510	55	100	10	TC5510010
19	40	7	TC19407	55	100	12	TC5510012
19	40	10	TC194010	55	110	12	TC5511012
19	47	10	TC194710	57	80	12	TC578012
20	27	5	TC20275	57	82.5	12	TC5782.512
20	28	5	TC20285	57	85	12	TC578512
20	28	6	TC20286	58	74	10	TC587410
20	30	5	TC20305	58	75	10	TC587510
20	30	7	TC20307	58	80	10	TC588010
20	30	8	TC20308	58	80	12	TC588012
20	30	10	TC203010	58	85	12	TC588512
20	32	5	TC20325	58	86	13	TC588613
20	32	7	TC20327	60	72	8	TC60728
20	34	7	TC20347	60	72	10	TC607210
20	35	5	TC20355	60	72	12	TC607212
20	35	7	TC20357	60	75	8	TC60758
20	35	8	TC20358	60	75	10	TC607510
20	35	10	TC203510	60	75	12	TC607512
20	38	8	TC20388	60	80	7	TC60807
20	38	10	TC203810	60	80	8	TC60808
20	40	5	TC20405	60	80	10	TC608010
20	40	7	TC20407	60	80	12	TC608012
20	40	8	TC20408	60	82	12	TC608212
20	40	10	TC204010	60	65	8	TC60658
20	42	5	TC20425	60	85	10	TC608510
20	42	7	TC20427	60	85	12	TC608512
20	42	8	TC20428	60	86.5	10	TC6086.510
20	42	10	TC204210	60	90	8	TC60908
20	45	7	TC20457	60	90	10	TC609010
20	45	8	TC20458	60	90	12	TC609012
20	45	10	TC204510	60.5	93	10	TC60.59310
20	47	5	TC20475	60.5	93	12	TC60.59312
20	47	7	TC20477	60	95	10	TC609510
20	47	8	TC20478	60	95	12	TC609512
20	47	10	TC204710	60	100	12	TC6010012
20	47	12	TC204712	60	100	13	TC6010013
20	50	5	TC20505	60	110	12	TC6011012
20	50	8	TC20508	60	126		TC60*126
20	50	10	TC205010	60	130	12	TC6013012
20	52	7	TC20527	62	80	10	TC628010
20	52	8	TC20528	62	80	12	TC628012
20	52	10	TC205210	62	85	10	TC628510
22	32	7	TC22327	62	85	12	TC628512
22	32	10	TC223210	62	90	12	TC629012
22	35	7	TC22357	62	93	12	TC629312
22	35	10	TC223510	62	95	12	TC629512
22	38	8	TC22388	62	100	12	TC6210012
22	38	10	TC223810	65	80	8	TC65808
22	40	7	TC22407	65	80	10	TC658010
22	40	8	TC22408	65	80	12	TC658012
22	40	10	TC224010	65	85	8	TC65858
22	42	7	TC22427	65	85	10	TC658510
22	42	8	TC22428	65	85	12	TC658512
22	42	10	TC224210	65	90	8	TC65908
22	45	7	TC22457	65	90	10	TC659010
22	45	8	TC22458	65	90	12	TC659012
22	45	10	TC224510	65	95	10	TC659510
22	47	7	TC22477	65	95	12	TC659512
22	47	10	TC224710	65	100	10	TC6510010
22	48	8	TC22488	65	100	12	TC6510012
22	48	10	TC224810	65	105	12	TC6510512
22	50	10	TC225010	65	110	10	TC6511010
22	52	5	TC22525	65	110	12	TC6511012
22	52	10	TC225210	65	120	12	TC6512012
23	37	7	TC23377	65	140	12	TC6514012
23	47	7	TC23477	68	90	10	TC689010
23	47	8	TC23478	68	100	10	TC6810010
23	47	10	TC234710	68	100	13	TC6810013
23	50	5	TC23505	68	110	12	TC6811012
24	40	7	TC24407	68	120	12	TC6812012
24	40	10	TC244010	67.85	86	11	TC67.858611
24	42	7	TC24427	69	86	8	TC69868
24	42	10	TC244210	70	80	8	TC70808
24	45	10	TC244510	70	85	8	TC70858
24	47	7	TC24477	70	85	12	TC708512
24	47	10	TC244710	70	87	6	TC70876
24	58	12	TC245812	70	88	12	TC708812
25	31	7	TC25317	70	90	8	TC70908
25	32	4	TC25324	70	90	10	TC709010
25	33	7	TC25337	70	90	12	TC709012
25	34	7	TC25347	70	90	13	TC709013
25	35	5	TC25355	70	92	12	TC709212
25	35	6	TC25356	70	95	7	TC70957
25	35	7	TC25357	70	95	10	TC709510
25	35	10	TC253510	70	95	12	TC709512
25	36.5	7	TC2536.57	70	95	13	TC709513
25	37	7	TC25377	70	100	10	TC7010010
25	38	7	TC25387	70	100	12	TC7010012
25	38	8	TC25388	70	100	13	TC7010013
25	38	10	TC253810	70	105	10	TC7010510
25	40	5	TC25405	70	105	12	TC7010512
25	40	7	TC25407	70	110	10	TC7011010
25	40	8	TC25408	70	110	12	TC7011012
25	40	10	TC254010	70	115	12	TC7011512
25	41	10	TC254110	70	120	12	TC7012012
25	41.25	6	TC2541.256	70	130	12	TC7013012
25	42	7	TC25427	72	90	10	TC729010
25	42	8	TC25428	72	90	12	TC729012
25	42	9	TC25429	72	95	12	TC729512
25	42	10	TC254210	72	100	12	TC7210012
25	44	10	TC254410	72	110	12	TC7211012
25	45	5	TC25455	75	90	10	TC759010
25	45	7	TC25457	75	90	12	TC759012
25	45	8	TC25458	75	95	6	TC75956
25	45	10	TC254510	75	95	10	TC759510
25	45	12	TC254512	75	95	12	TC759512
25	47	5	TC25475	75	100	10	TC7510010
25	47	7	TC25477	75	100	12	TC7510012
25	47	8	TC25478	75	100	13	TC7510013
25	47	10	TC254710	75	105	10	TC7510510
25	50	5	TC25505	75	105	12	TC7510512
25	50	7	TC25507	75	106	12	TC7510612
25	50	8	TC25508	75	110	10	TC7511010
25	50	10	TC255010	75	110	12	TC7511012
25	50	12	TC255012	75	115	12	TC7511512
25	52	5	TC25525	75	120	12	TC7512012
25	52	7	TC25527	75	130	12	TC7513012
25	52	8	TC25528	77	102	12	TC7710212
25	52	10	TC255210	80	95	12	TC809512
25	52	12	TC255212	80	100	10	TC8010010
25	55	10	TC255510	80	100	12	TC8010012
25	60	10	TC256010	80	105	10	TC8010510
25	60	12	TC256012	80	105	12	TC8010512
25	62	5	TC25625	80	105	13	TC8010513
25	62	8	TC25628	80	110	10	TC8011010
25	62	10	TC256210	90	130	12	TC9013012
25	62	12	TC256212	90	130	13	TC9013013
26	34	6	TC26346	90	135	12	TC9013512
26	35	7	TC26357	90	135	14	TC9013514
26	37	7	TC26377	90	140	12	TC9014012
26	38	7	TC26387	90	140	14	TC9014014
26	42	6.5	TC26426.5	90	145	12	TC9014512
26	47	10	TC264710	90	145	14	TC9014514
26	48	8	TC26488	90	150	12	TC9015012
26	52	8	TC26528	90	150	14	TC9015014
26	55	10	TC265510	92	120	12	TC9212012
27	35	7	TC27357	92	125	12	TC9212512
27	37	7	TC27377	95	105	12	TC9510512
27	38	7	TC27387	95	110	12	TC9511012
27	38	10	TC273810	95	115	10	TC9511510
27	39	10.5	TC273910.5	95	115	12	TC9511512
27	40	7	TC27407	95	120	8	TC951208
27	42	7	TC27427	95	120	10	TC9512010
27	42	10	TC274210	95	120	12	TC9512012
27	47	7	TC27477	95	125	10	TC9512510
27	52	10	TC275210	95	125	12	TC9512512
28	35	7	TC28357	95	130	12	TC9513012
28	37	4	TC28374	95	130	13	TC9513013
28	37	7	TC28377	95	130	14	TC9513014
28	38	8	TC28388	95	135	12	TC9513512
28	38	10	TC283810	95	135	14	TC9513514
28	40	7	TC28407	95	140	12	TC9514012
28	40	8	TC28408	95	140	14	TC9514014
28	40	10	TC284010	95	145	12	TC9514512
28	42	7	TC28427	95	145	14	TC9514514
28	42	8	TC28428	98	120	12	TC9812012
28	42	10	TC284210	98	122	13	TC9812213
28	45	7	TC28457	98	130	12	TC9813012
28	45	8	TC28458	100	120	10	TC10012010
28	45	10	TC284510	100	120	12	TC10012012
28	47	7	TC28477	100	125	10	TC10012510
28	47	8	TC28478	100	125	12	TC10012512
28	48	10	TC284810	100	130	12	TC10013012
28	47	11	TC284711	100	130	13	TC10013013
28	48	4	TC28484	100	130	14	TC10013014
28	48	8	TC28488	100	135	12	TC10013512
28	49	8	TC28498	100	135	14	TC10013514
28	50	7	TC28507	100	140	12	TC10014012
28	50	8	TC28508	100	140	14	TC10014014
28	50	10	TC285010	100	145	12	TC10014512
28	50	12	TC285012	100	145	14	TC10014514
28	52	8	TC28528	100	150	12	TC10015012
28	52	10	TC285210	100	150	14	TC10015014
28	52	12	TC285212	101	125	13	TC10112513
28	55	7	TC28557	102	130	12	TC10213012
28	55	10	TC285510	105	125	12	TC10512512
28	55	11	TC285511	105	130	7.5	TC1051307.5
28	56	10	TC285610	105	130	12	TC10513012
28	62	10	TC286210	105	130	13	TC10513013
29	43	7	TC29437	105	130	14	TC10513014
29	62	10	TC296210	105	135	12	TC10513512
29.5	40	10	TC29.54010	105	135	14	TC10513514
30	40	7	TC30407	105	140	12	TC10514012
30	40	10	TC304010	105	140	14	TC10514014
30	40	11	TC304011	105	145	12	TC10514512
30	42	4.5	TC30424.5	105	145	14	TC10514514
30	42	7	TC30427	105	150	12	TC10515012
30	42	8	TC30428	105	150	14	TC10515014
30	42	10	TC304210	110	130	12	TC11013012
30	42	11	TC304211	110	130	13	TC11013013
30	44	8	TC30448	110	130	14	TC11013014
30	44	10	TC304410	110	135	12	TC11013512
30	45	5	TC30455	110	135	14	TC11013514
30	45	7	TC30457	110	140	10	TC11014010
30	45	8	TC30458	110	140	12	TC11014012
30	45	10	TC304510	110	140	13	TC11014013
30	45	12	TC304512	110	140	14	TC11014014
30	46	7	TC30467	110	145	12	TC11014512
30	46	10	TC304610	110	145	14	TC11014514
30	47	5	TC30475	110	150	12	TC11015012
30	47	7	TC30477	110	150	14	TC11015014
30	47	8	TC30478	115	130	12	TC11513012
30	47	10	TC304710	115	135	12	TC11513512
30	47	12	TC304712	115	135	14	TC11513514
30	48	8	TC30488	115	140	12	TC11514012
30	48	10	TC304810	115	140	13	TC11514013
30	50	5	TC30505	115	140	14	TC11514014
30	50	7	TC30507	115	145	12	TC11514512
30	50	8	TC30508	115	145	14	TC11514514
30	50	10	TC305010	115	150	12	TC11515012
30	50	12	TC305012	115	150	14	TC11515014
30	52	5	TC30525	115	160	15	TC11516015
30	52	7	TC30527	118	142	14	TC11814214
30	52	8	TC30528	118	150	12	TC11815012
30	52	10	TC305210	120	140	12	TC12014012
30	52	12	TC305212	120	140	14	TC12014014
30	54	9	TC30549	120	145	12	TC12014512
30	55	5	TC30555	120	145	14	TC12014514
30	55	7	TC30557	120	150	10	TC12015010
30	55	8	TC30558	120	150	12	TC12015012
30	55	10	TC305510	120	150	14	TC12015014
30	55	12	TC305512	120	150	15	TC12015015
30	56	8	TC30568	120	150	16	TC12015016
30	56	10	TC305610	120	155	14	TC12015514
30	56	12	TC305612	120	160	12	TC12016012
30	58	8	TC30588	120	160	13	TC12016013
30	58	10	TC305810	120	160	14	TC12016014
30	58	12	TC305812	120	160	15	TC12016015
30	60	8	TC30608	120	160	16	TC12016016
30	60	10	TC306010	120	170	12	TC12017012
30	60	12	TC306012	120	170	14	TC12017014
30	62	5	TC30625	120	170	16	TC12017016
30	62	7	TC30627	120	180	15	TC12018015
30	62	8	TC30628	125	140	12	TC12514012
30	62	10	TC306210	125	140	14	TC12514014
30	62	12	TC306212	125	145	12	TC12514512
30	65	10	TC306510	125	145	14	TC12514514
30	62	12	TC306212	125	148	12	TC12514812
30	68	12	TC306812	125	150	12	TC12515012
30	72	5	TC30725	125	150	13	TC12515013
30	72	8	TC30728	125	150	14	TC12515014
30	72	10	TC307210	125	150	15	TC12515015
30	72	12	TC307212	125	155	15	TC12515515
32	40.2	10.5	TC3240.210.5	125	160	12	TC12516012
32	42	5	TC32425	125	160	14	TC12516014
32	42	7	TC32427	125	160	15	TC12516015
32	42	8	TC32428	125	160	16	TC12516016
32	42	10	TC324210	130	150	12	TC13015012
32	43	7	TC32437	130	150	14	TC13015014
32	43	10	TC324310	130	160	12	TC13016012
32	44	7	TC32447	130	160	13	TC13016013
32	44	8	TC32448	130	160	14	TC13016014
32	44	10	TC324410	130	160	15	TC13016015
32	45	7	TC32457	130	160	16	TC13016016
32	45	8	TC32458	130	165	15	TC13016515
32	45	10	TC324510	130	170	12	TC13017012
32	47	7	TC32477	130	170	14	TC13017014
32	47	8	TC32478	130	170	15	TC13017015
32	47	10	TC324710	135	160	12	TC13516012
32	48	8	TC32488	135	160	14	TC13516014
32	48	10	TC324810	135	160	15	TC13516015
32	50	7	TC32507	135	160	16	TC13516016
32	50	8	TC32508	135	165	15	TC13516515
32	50	10	TC325010	135	170	12	TC13517012
32	50	12	TC325012	135	170	14	TC13517014
30	60	8	TC30608	135	170	15	TC13517015
30	60	10	TC306010	135	170	16	TC13517016
30	60	12	TC306012	135	175	16	TC13517516
30	62	5	TC30625	140	160	12	TC14016012
30	62	7	TC30627	140	160	14	TC14016014
30	62	8	TC30628	140	170	12	TC14017012
30	62	10	TC306210	140	170	14	TC14017014
30	62	12	TC306212	140	170	15	TC14017015
30	65	10	TC306510	140	170	16	TC14017016
30	62	12	TC306212	140	175	16	TC14017516
30	68	12	TC306812	140	180	15	TC14018015
30	72	5	TC30725	142	170	16	TC14217016
30	72	8	TC30728	142	177	15	TC14217715
30	72	10	TC307210	145	170	15	TC14517015
30	72	12	TC307212	145	175	14	TC14517514
32	40.2	10.5	TC3240.210.5	145	175	15	TC14517515
32	42	5	TC32425	145	175	16	TC14517516
32	42	7	TC32427	145	180	16	TC14518016
32	42	8	TC32428	150	170	15	TC15017015
32	42	10	TC324210	150	170	16	TC15017016
32	43	7	TC32437	150	180	12	TC15018012
32	43	10	TC324310	150	180	13	TC15018013
32	44	7	TC32447	150	180	14	TC15018014
32	44	8	TC32448	150	180	15	TC15018015
32	44	10	TC324410	150	180	16	TC15018016
32	45	7	TC32457	150	185	15	TC15018515
32	45	8	TC32458	150	190	16	TC15019016
32	45	10	TC324510	155	180	12	TC15518012
32	47	7	TC32477	155	180	15	TC15518015
32	47	8	TC32478	155	180	16	TC15518016
32	47	10	TC324710	155	185	15	TC15518515
32	48	8	TC32488	155	190	16	TC15519016
32	48	10	TC324810	160	180	16	TC16018016
32	50	7	TC32507	160	185	15	TC16018515
32	50	8	TC32508	160	190	12	TC16019012
32	50	10	TC325010	160	190	13	TC16019013
32	50	12	TC325012	160	190	15	TC16019015
32	52	7	TC32527	160	190	16	TC16019016
32	52	8	TC32528	160	195	16	TC16019516
32	52	10	TC325210	160	200	15	TC16020015
32	52	12	TC325212	160	200	16	TC16020016
32	55	7	TC32557	165	190	16	TC16519016
32	55	8	TC32558	165	195	16	TC16519516
32	55	10	TC325510	165	200	16	TC16520016
32	55	12	TC325512	170	190	16	TC17019016
32	56	10	TC325610	170	200	12	TC17020012
32	56	12	TC325612	170	200	15	TC17020015
32	58	12	TC325812	170	200	16	TC17020016
32	60	10	TC326010	170	210	15	TC17021015
32	60	12	TC326012	175	200	12	TC17520012
32	62	8	TC32628	175	200	15	TC17520015
32	62	10	TC326210	175	200	16	TC17520016
32	62	12	TC326212	175	205	15	TC17520515
32	65	10	TC326510	175	215	15	TC17521515
32	65	12	TC326512	180	200	15	TC18020015
32	72	10	TC327210	180	210	15	TC18021015
32	72	12	TC327212	180	210	16	TC18021016
33	43	7	TC33437	180	210	18	TC18021018
33	54	7	TC33547	180	215	15	TC18021515
33	55	10	TC335510	180	215	16	TC18021516
33	58	10	TC335810	180	215	18	TC18021518
33	58	12	TC335812	180	220	15	TC18022015
34	48	8	TC34488	180	220	16	TC18022016
34	48	10	TC344810	180	220	18	TC18022018
34	50	7	TC34507	185	210	16	TC18521016
34	55	12	TC345512	185	215	15	TC18521515
35	42	10	TC354210	185	215	16	TC18521516
35	45	7	TC35457	190	220	15	TC19022015
35	45	8	TC35458	190	220	16	TC19022016
35	45	10	TC354510	190	220	18	TC19022018
35	46	7	TC35467	190	225	12	TC19022512
35	47	7	TC35477	190	225	15	TC19022515
35	47	10	TC354710	190	225	18	TC19022518
35	48	8	TC35488	190	230	15	TC19023015
35	48	10	TC354810	190	230	18	TC19023018
35	50	7	TC35507	190	240	15	TC19024015
35	50	8	TC35508	190	240	16	TC19024016
35	50	10	TC355010	190	240	18	TC19024018
35	50	12	TC355012	195	225	18	TC19522518
35	52	5	TC35525	195	230	15	TC19523015
35	52	7	TC35527	195	230	20	TC19523020
35	52	8	TC35528	195	235	16	TC19523516
35	52	10	TC355210	200	220	12	TC20022012
35	52	12	TC355212	200	225	15	TC20022515
35	55	5	TC35555	200	225	18	TC20022518
35	55	8	TC35558	200	230	15	TC20023015
35	55	10	TC355510	200	230	16	TC20023016
35	55	12	TC355512	200	230	18	TC20023018
35	56	8	TC35568	200	235	15	TC20023515
35	56	10	TC355610	200	235	18	TC20023518
35	56	12	TC355612	200	240	15	TC20024015
35	57	5	TC35575	200	240	16	TC20024016
35	58	8	TC35588	200	240	18	TC20024018
35	58	10	TC355810	200	250	15	TC20025015
35	58	12	TC355812	200	250	18	TC20025018
35	60	5	TC35605	210	240	15	TC21024015
35	60	8	TC35608	210	240	16	TC21024016
35	60	10	TC356010	210	240	18	TC21024018
35	60	12	TC356012	210	250	15	TC21025015
35	62	5	TC35625	210	250	18	TC21025018
35	62	7	TC35627	215	240	12	TC21524012
35	62	8	TC35628	215	250	15	TC21525015
35	62	10	TC356210	215	250	16	TC21525016
35	62	12	TC356212	215	250	18	TC21525018
35	62	13	TC356213	220	240	18	TC22024018
35	65	8	TC35658	220	250	12	TC22025012
35	65	10	TC356510	220	250	15	TC22025015
35	65	12	TC356512	220	250	18	TC22025018
35	68	10	TC356810	220	255	18	TC22025518
35	68	12	TC356812	220	260	15	TC22026015
35	70	10	TC357010	220	260	16	TC22026016
35	70	12	TC357012	220	260	18	TC22026018
35	72	5	TC35725	230	260	18	TC23026018
35	72	7	TC35727	230	265	18	TC23026518
35	72	8	TC35728	235	255	12	TC23525512
35	72	10	TC357210	235	265	12	TC23526512
35	72	12	TC357212	235	265	16	TC23526516
35	75	12	TC357512	235	265	18	TC23526518
35	80	8	TC35808	235	270	16	TC23527016
35	80	10	TC358010	240	270	15	TC24027015
35	80	12	TC358012	240	270	18	TC24027018
35	86	12	TC358612	240	275	18	TC24027518
35	89	12	TC358912	240	280	15	TC24028015
36	46	7	TC36467	240	280	18	TC24028018
36	46	10	TC364610	250	280	18	TC25028018
36	50	10	TC365010	260	280	10	TC26028010
36	56	10	TC365610	250	285	18	TC25028518
36	58	10	TC365810	250	290	15	TC25029015
36	58	12	TC365812	250	290	18	TC25029018
36	60	10	TC366010	260	290	15	TC26029015
37	62	8	TC37628	260	290	18	TC26029018
37	66	10	TC376610	260	290	20	TC26029020
37	76	10	TC377610	250	300	20	TC25030020
37	80	5	TC37805	260	300	18	TC26030018
38	48	5	TC38485	260	300	20	TC26030020
38	50	7	TC38507	260	300	30	TC26030030
38	50	8	TC38508	265	290	16	TC26529016
38	50	10	TC385010	265	300	18	TC26530018
38	50	12	TC385012	270	310	18	TC27031018
38	52	7	TC38527	270	310	20	TC27031020
38	52	8	TC38528	273.05	311.15	14.3	TC273.05311.1514.3
38	52	10	TC385210	270	320	18	TC27032018
38	52	12	TC385212	275	310	15	TC27531015
38	54	10	TC385410	280	320	18	TC28032018
38	55	8	TC38558	280	320	20	TC28032020
38	55	10	TC385510	290	330	18	TC29033018
38	55	12	TC385512	290	330	20	TC29033020
38	56	8	TC38568	295	340	20	TC29534020
38	56	10	TC385610	300	340	18	TC30034018
38	56	12	TC385612	300	340	20	TC30034020
38	58	8	TC38588	300	344	20	TC30034420
38	58	10	TC385810	310	350	18	TC31035018
38	58	12	TC385812	310	350	20	TC31035020
38	60	8	TC38608	320	358	20	TC32035820
38	60	10	TC386010	320	360	18	TC32036018
38	60	12	TC386012	320	360	20	TC32036020
38	62	5	TC38625	330	370	15	TC33037015
38	62	7	TC38627	330	370	18	TC33037018
38	62	8	TC38628	330	370	20	TC33037020
38	62	10	TC386210	330	370	25	TC33037025
38	62	12	TC386212	340	380	20	TC34038020
38	65	8	TC38658	342.9	393.7	20.62	TC342.9393.720.62
38	65	10	TC386510	350	390	18	TC35039018
38	65	12	TC386512	350	390	20	TC35039020
38	70	10	TC387010	355	395	20	TC35539520
38	70	12	TC387012	355	400	20	TC35540020
38	72	12	TC387212	360	400	20	TC36040020
38	75	12	TC387512	360	420	28	TC36042028
40	50	7	TC40507	370	410	15	TC37041015
40	50	10	TC405010	370	410	20	TC37041020
40	50	12	TC405012	380	420	20	TC38042020
40	52	5	TC40525	390	430	20	TC39043020
40	52	8	TC40528	400	440	20	TC40044020
40	52	10	TC405210	400	444	20	TC40044420
40	52	12	TC405212	400	450	15.6	TC40045015.6
40	55	7	TC40557	400	450	18	TC40045018
40	55	8	TC40558	400	450	20	TC40045020
40	55	10	TC405510	400	450	25	TC40045025
40	55	12	TC405512	400	460	25	TC40046025
40	56	7	TC40567	406.4	444	17.5	TC406.444417.5
40	56	8	TC40568	410	450	20	TC41045020
40	56	10	TC405610	410	460	25	TC41046025
40	56	12	TC405612	416	456	20	TC41645620
40	58	8	TC40588	420	460	20	TC42046020
40	58	10	TC405810	420	470	20	TC42047020
40	58	12	TC405812	420	470	25	TC42047025
40	60	5	TC40605	420	480	25	TC42048025
40	60	7	TC40607	430	470	18	TC43047018
40	60	8	TC40608	430	470	20	TC43047020
40	60	10	TC406010	430	470	25	TC43047025
40	60	12	TC406012	430	480	25	TC43048025
40	62	5	TC40625	430	480	22	TC43048022
40	62	7	TC40627	440	480	20	TC44048020
40	62	8	TC40628	440	490	25	TC44049025
40	62	9	TC40629	450	490	20	TC45049020
40	62	10	TC406210	450	500	20	TC45050020
40	62	12	TC406212	450	500	25	TC45050025
40	64	8	TC40648	450	510	25	TC45051025
40	65	5	TC40655	460	500	20	TC46050020
40	65	8	TC40658	460	510	25	TC46051025
40	65	10	TC406510	465	510	20	TC46551020
40	65	12	TC406512	470	520	20	TC47052020
40	68	5	TC40685	470	520	25	TC47052025
40	68	8	TC40688	480	520	20	TC48052020
40	68	10	TC406810	480	530	20	TC48053020
40	68	12	TC406812	480	530	22	TC48053022
40	70	5	TC40705	480	530	25	TC48053025
40	70	8	TC40708	480	530	28	TC48053028
40	70	10	TC407010	480	540	25	TC48054025
40	70	12	TC407012	480	540	28	TC48054028
40	72	8	TC40728	485	520	16	TC48552016
40	72	10	TC407210	490	540	25	TC49054025
40	72	12	TC407212	490	550	20	TC49055020
40	75	8	TC40758	490	550	25	TC49055025
40	75	10	TC407510	500	540	20	TC50054020
40	75	12	TC407512	500	540	25	TC50054025
40	80	7	TC40807	500	550	20	TC50055020
40	80	10	TC408010	500	550	25	TC50055025
40	80	12	TC408012	500	560	28	TC50056028
40	85	10	TC408510	510	560	20	TC51056020
40	85	12	TC408512	510	560	25	TC51056025
40	90	8	TC40908	520	560	20	TC52056020
40	90	10	TC409010	520	570	25	TC52057025
40	90	12	TC409012	530	570	20	TC53057020
42	55	5	TC42555	530	580	15	TC53058015
42	55	7	TC42557	530	580	22	TC53058022
42	55	8	TC42558	530	580	25	TC53058025
42	55	10	TC425510	540	580	20	TC54058020
42	55	12	TC425512	540	590	20	TC54059020
42	60	8	TC42608	540	590	25	TC54059025
42	60	9	TC42609	550	600	25	TC55060025
42	60	10	TC426010	550	610	25	TC55061025
42	60	12	TC426012	555	610	25	TC55561025
42	62	7	TC42627	560	600	20	TC56060020
42	62	8	TC42628	560	610	20	TC56061020
42	62	10	TC426210	560	610	22	TC56061022
42	62	12	TC426212	560	610	25	TC56061025
42	65	8	TC42658	570	610	20	TC57061020
42	65	10	TC426510	570	620	20	TC57062020
42	65	12	TC426512	570	620	22	TC57062022
42	68	10	TC426810	570	620	25	TC57062025
42	68	12	TC426812	580	630	22	TC58063022
42	70	10	TC427010	580	630	25	TC58063025
42	70	12	TC427012	580	640	20	TC58064020
42	72	8	TC42728	580	640	25	TC58064025
42	72	10	TC427210	590	640	25	TC59064025
42	72	12	TC427212	600	640	20	TC60064020
42	75	10	TC427510	600	650	20	TC60065020
42	75	12	TC427512	600	650	22	TC60065022
42	80	12	TC428012	600	650	25	TC60065025
43	72	10	TC437210	600	660	25	TC60066025
43	72	12	TC437212	609	660.4	25.4	TC609660.425.4
44	58	8	TC44588	610	660	25	TC61066025
44	62	5	TC44625	620	670	25	TC62067025
44	62	8	TC44628	630	670	20	TC63067020
44	62	10	TC446210	630	680	25	TC63068025
44	62	12	TC446212	640	690	25	TC64069025
44	65	10	TC446510	650	700	25	TC65070025
44	75	12	TC447512	650	710	25	TC65071025
45	55	8	TC45558	660	700	25	TC66070025
45	55	10	TC455510	670	720	25	TC67072025
45	55	12	TC455512	670	730	25	TC67073025
45	56	8	TC45568	676	740	25	TC67674025
45	60	7	TC45607	680	730	22	TC68073022
45	60	8	TC45608	685	745	25	TC68574525
45	60	10	TC456010	700	750	25	TC70075025
45	60	12	TC456012	710	760	25	TC71076025
45	62	7	TC45627	730	790	25	TC73079025
45	62	8	TC45628	740	790	25	TC74079025
45	62	9	TC45629	750	800	25	TC75080025
45	62	10	TC456210	780	830	25	TC78083025
45	62	12	TC456212	800	850	25	TC80085025
45	65	5	TC45655	800	860	25	TC80086025
45	65	8	TC45658	810	870	25	TC81087025
45	65	10	TC456510	810	874	25	TC81087425
45	65	12	TC456512	840	890	25	TC84089025
45	68	5	TC45685	840	910	25	TC84091025
45	68	8	TC45688	850	900	25	TC85090025
45	68	10	TC456810	850	910	25	TC85091025
45	68	12	TC456812	870	920	25	TC87092025
45	70	5	TC45705	890	950	25	TC89095025
45	70	8	TC45708	900	960	25	TC90096025
45	70	10	TC457010	900	960	30	TC90096030
45	70	12	TC457012	900	950	25	TC90095025
45	72	5	TC45725
