TG Oil Seal

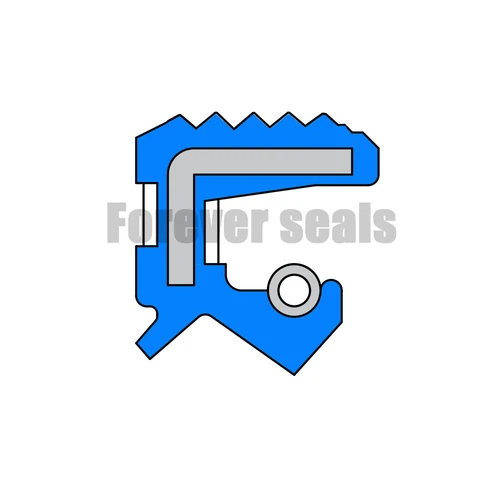

TG oil seal is modified oil seal of general type. It can instead of TC, TB, VB, VC, SB, TC4, DKB oil seal etc. It is designed 3 lips inside with good sealing performance. TG has special design of a corrugated OD.


Temperature: -40 - +200℃

Material: NBR, FKM

Color: balck, brown

Application: shaft sealing

1. Description

TG oil seal is modified oil seal of general type. It can instead of TC, TB, VB, VC, SB, TC4, DKB oil seal etc. It is designed 3 lips inside with good sealing performance. TG has special design of a corrugated OD. Particularly suitable for applications where the housing material is subject to large thermal expension, i.e. aluminum housing.



2. Materials


NBR (Nitrile Butadiene Rubber)

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

FKM (fluorinated rubber)

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems

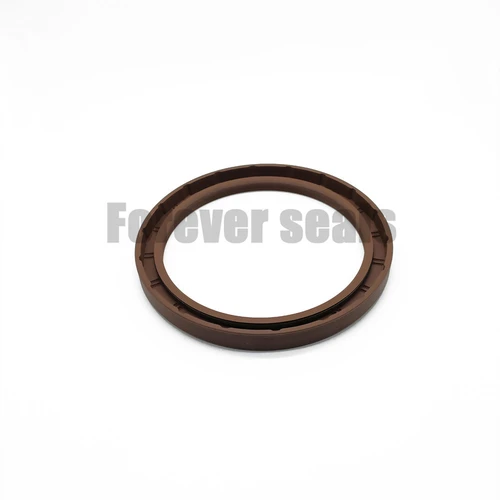

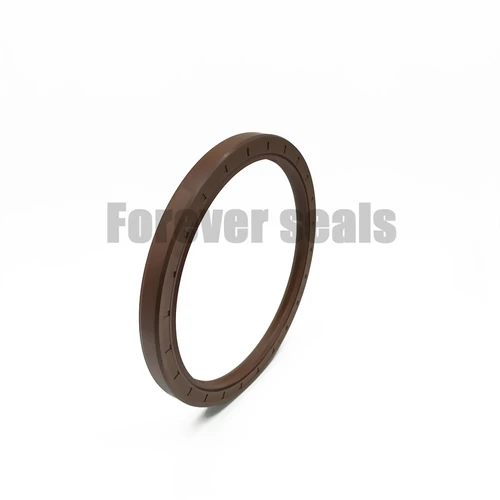

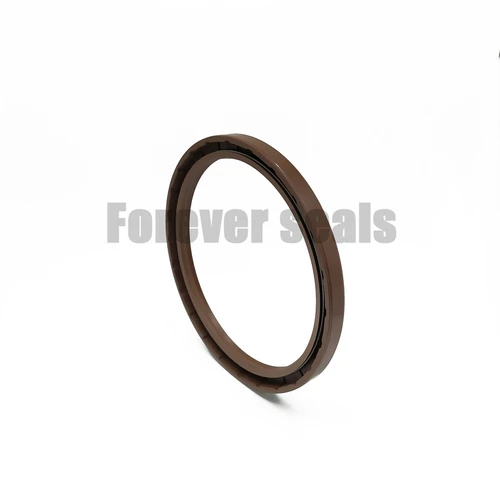

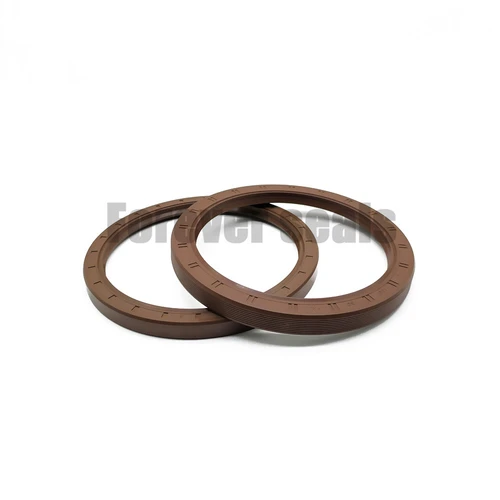

3. Product Display





4. Advantages

The structure is simple and easy to manufacture.
Light weight and low consumables.
The oil seal has a small axial dimension, is easy to machine, and makes the machine compact.

The sealing machine has good performance and long service life.
The oil seal has certain adaptability to the vibration of the machine and the eccentricity of the spindle.
Easy to disassemble and easy to test.
