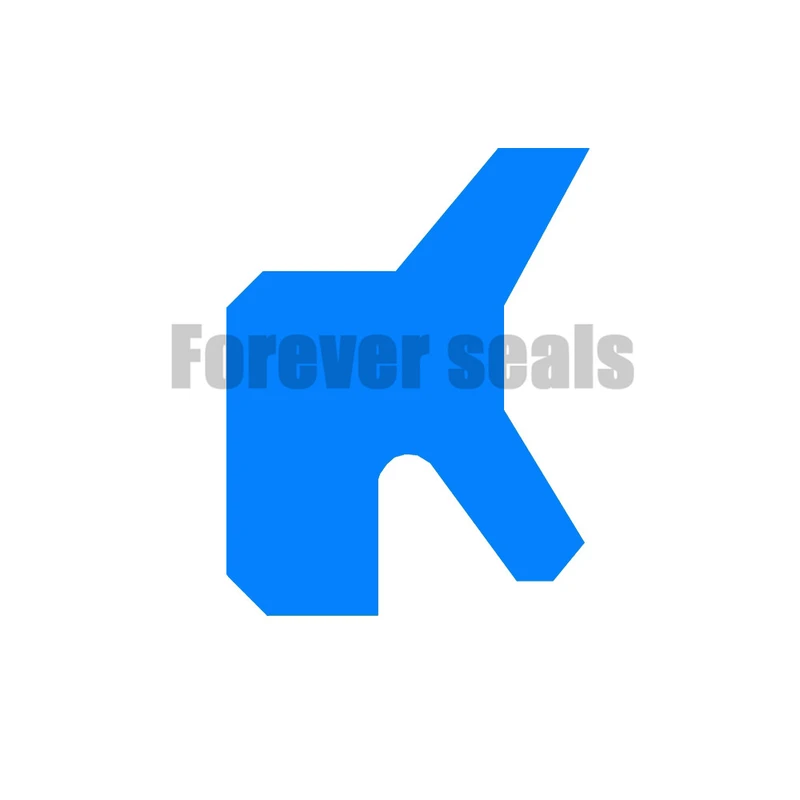

1. Description

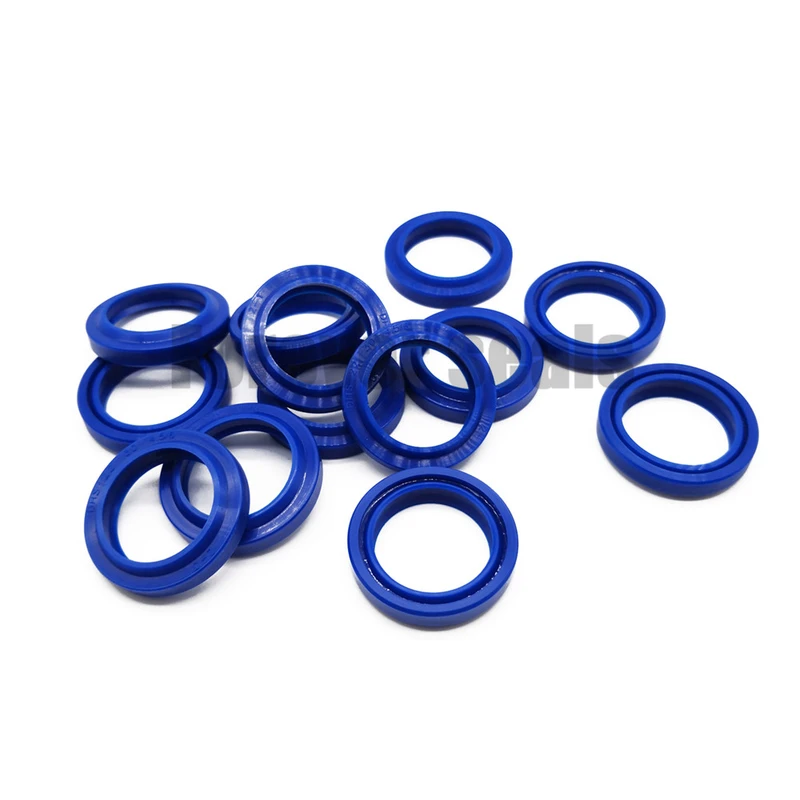

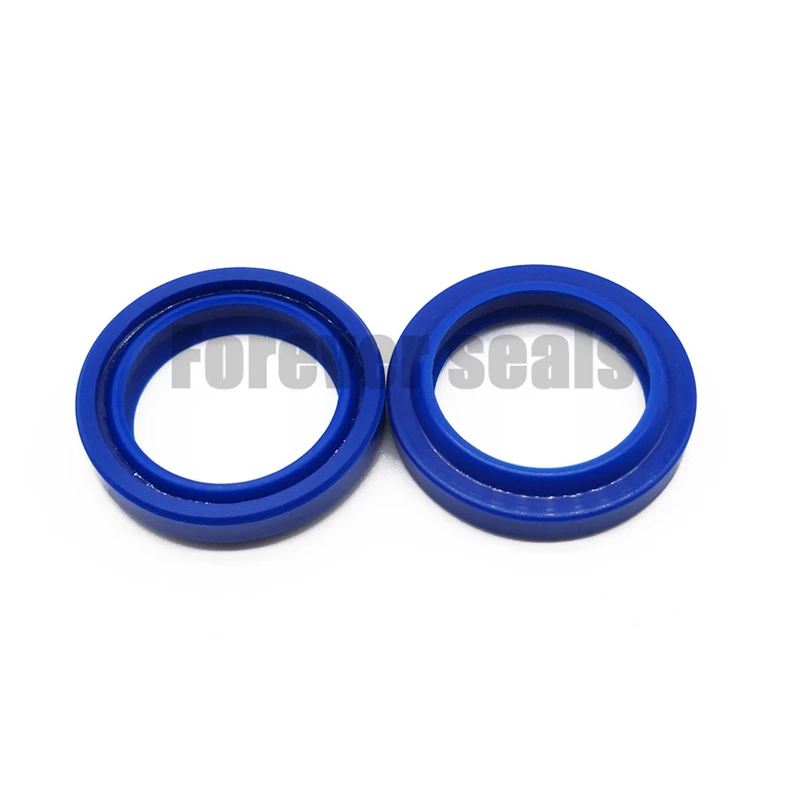

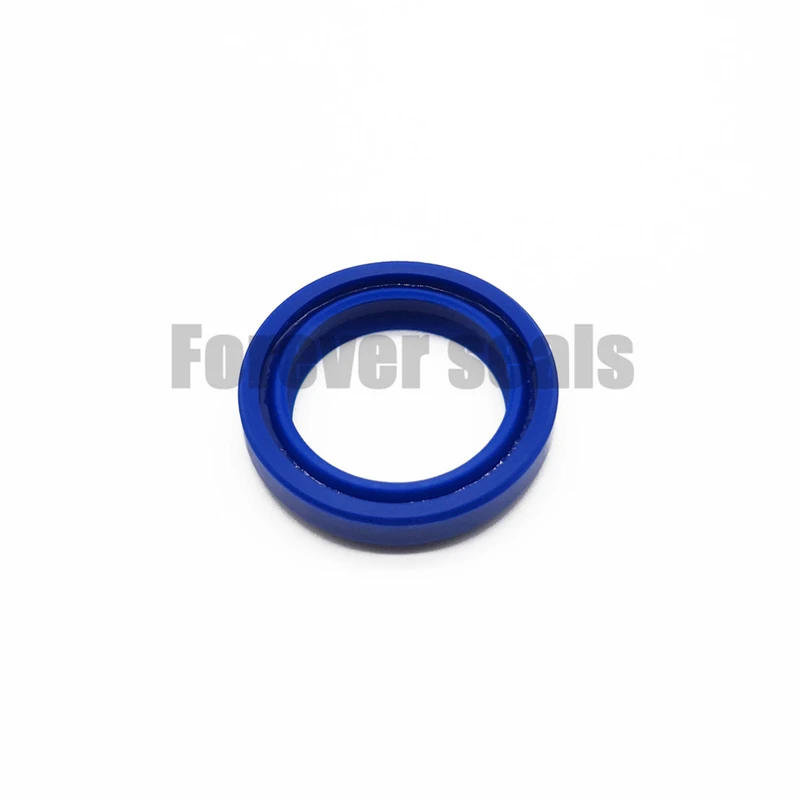

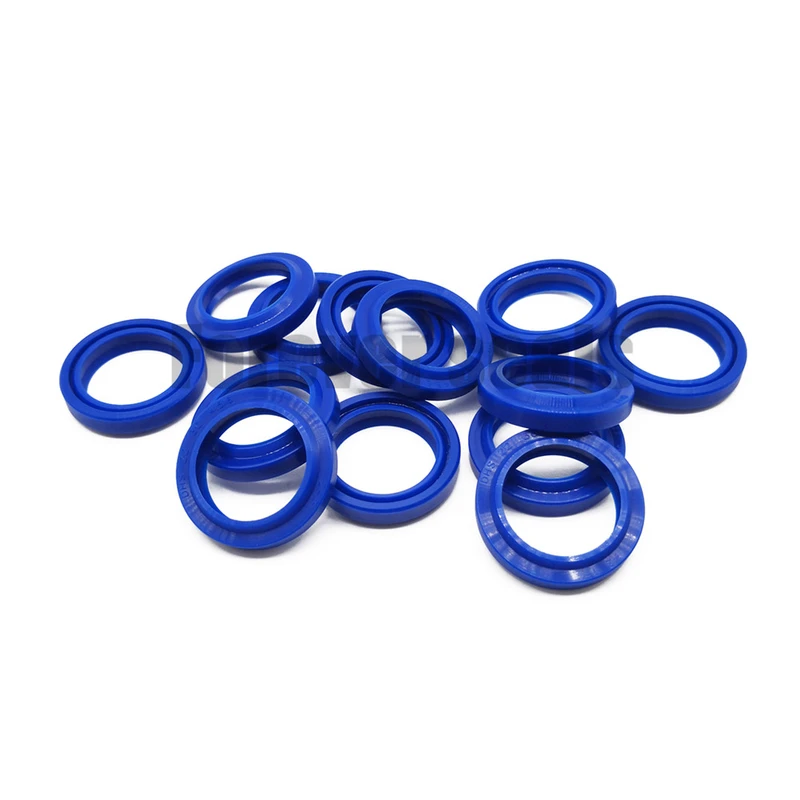

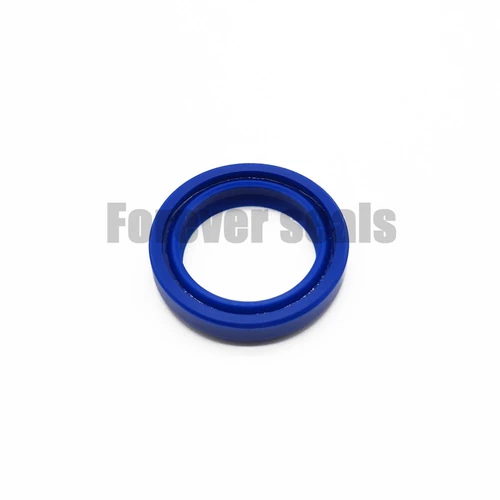

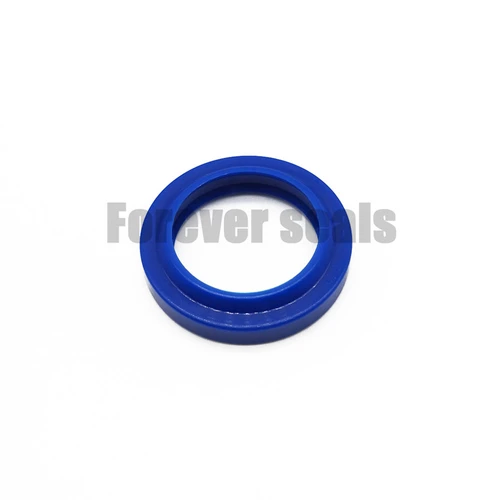

DHS seal is wiper seal which used in hydraulic application for prevent the entering of dust and impurity. It is bidirectional seal.
2. Installation Recommendation
3. Standard materials
Material: PU
Hardness: 93 ± 2 shore A
Color: Blue / Green
4. Working condition
Temperature: -35~+100℃
Speed: 1m/s
Medium: Hydraulic oils ( mineral oil-based )
5. Dimensions
| DHS8*13*3/4.5 | DHS12*18*3.9/6 | DHS18*26*4.5/6 |
| DHS9*14*3.4/5 | DHS12*20*4.5/6 | DHS18*28*4/8 |
| DHS10*15*3.8/6.4 | DHS12.5*20.5*4.5/6 | DHS18.5*26*3.2/4 |
| DHS10*20*4/8 | DHS13*20*5/6.5 | DHS19*26*2.5/4 |
| DHS11.2*19.2*4.5/6 | DHS14*22*4.5/6 | DHS19*27*4.5/6 |
| DHS12*16*3/4 | DHS16*22*3.6/4.8 | DHS19*28*4.5/6 |
| DHS12*17*3.2/4.2 | DHS16*22*3.8/6 | DHS19.05*29.05*5.3/7 |
| DHS12*18*2.5/5 | DHS16*22*8/10 | DHS20*26*3.6/4.6 |
| DHS12*18*3.6/4.8 | DHS16*24*4.5/6 | DHS20*26*3.6/5 |
| DHS12*18*3.8/4.8 | DHS16*26*7/9.5 | DHS20*26*3/6 |
| DHS12*18*3.8/6.4 | DHS18*24*3.6/4.8 | DHS20*26*6/8 |
| DHS20*28*4.5/6 | DHS32*41*6/9 | DHS48*65*6.5/11 |
| DHS20*28*5/6.5 | DHS32*43.8*5/6.5 | DHS50*58*4.5/6 |
| DHS20*30*7/10 | DHS34.925*44.45*4.76 | DHS50*58*5/6.5 |
| DHS20*32*5/10 | DHS35*43*4.5/6 | DHS50*58*5/7 |
| DHS20*35*4 | DHS35*43*5/5.6 | DHS50*58*5.8/8 |
| DHS22*30*4.5/6 | DHS35*43*5/6.5 | DHS50*63.5*7/10 |
| DHS22*33.8*3/5 | DHS35*43*4/7 | DHS50.8*60.33*5.5/7.2 |
| DHS22.4*30.4*4.5/6 | DHS35*43*5/7 | DHS51*60*5.5/7.5 |
| DHS23.5*31.5*4.5/6 | DHS35*45*4.6/8 | DHS52*62*5/6 |
| DHS24*32*4.5/6 | DHS35*45*5/7 | DHS52.8*58.4*4.5 |
| DHS25*30*4.5/6 | DHS35*45*5/10 | DHS53*61*5/6.5 |
| DHS25*31*3.6/5 | DHS35*45*8/12 | DHS53*61*5/7 |
| DHS25*31*4/6 | DHS35.5*43.5*5/6.5 | DHS55*63*5/6.5 |
| DHS25*33*4.5/6 | DHS36*44*4.5/5.8 | DHS55*65*5/7 |
| DHS25*35*5.3/7 | DHS38*46*5/6.5 | DHS55*65*5/8 |
| DHS25*36.8*5/8 | DHS38.1*47.625*5.5/7.5 | DHS55*65*6/8 |
| DHS25.4*34.93*4.76 | DHS40*30*10/7 | DHS56*64*5/6.5 |
| DHS26*32*2.5/4.2 | DHS40*48*4.5/5.8 | DHS56*66*6/8 |
| DHS26*32*4.2/6 | DHS40*48*4.5/6* | DHS57*67*5/6 |
| DHS26*34*4.5/6 | DHS40*48*5/6.5 | DHS57.15*69.85*6.35/9.53 |
| DHS27*35*4.5/6 | DHS40*48*5/7.5 | DHS58*66*5/6.5 |
| DHS28*36*4.5/5.8 | DHS40*48*6.5/11 | DHS60*68*5/6.5 |
| DHS28*36*4.5/6 | DHS40*50*10/7 | DHS60*68*6/7.5 |
| DHS28*36*4/7 | DHS41.28*50.8*4.76/6.5 | DHS60*70*5.3/7.3 |
| DHS28*39.8*4.5/6 | DHS42*50*4/7 | DHS60*70*6/8 |
| DHS28*40*5/10 | DHS42*51*4.5/6 | DHS60*73*7/10 |
| DHS29*40*5/6.5 | DHS43*51*5/6.5* | DHS63*71*5/6.5 |
| DHS30*38*4.5/5.8 | DHS44.45*53.98*4.75 | DHS63.5*71.5*5 |
| DHS30*38*4.5/6 | DHS44.5*54*5.5/7.3 | DHS63.5*76.2*6.35/9.53 |
| DHS30*38*5/6.5 | DHS45*53*4.5/5.8 | DHS65*73*5/6.5 |
| DHS30*38*4/7 | DHS45*53*4.5/7 | DHS66*74*4.5/6.5 |
| DHS30*40*5/6.5 | DHS45*53*6.5 | DHS67*75*5/6.5 |
| DHS31.5*39.5*5/6.5 | DHS45*54*5/6.5 | DHS68*81*6.5/11 |
| DHS31.75*41.275*5.38 | DHS45*55*5/6.8 | DHS70*78*4/7 |
| DHS31.75*41.28*5.35/8.38 | DHS45*57*5/9 | DHS70*79*7/10 |
| DHS31.75*41.28*5.5/7.5 | DHS46*54*4.5/5.8 | DHS70*80*5/8 |
| DHS32*40*4.5/5.8 | DHS46.5*54.5*5/6.5 | DHS70*80*6/8 |
| DHS32*40*5/6.5 | DHS47*57*7/10 | DHS71*81*6/8 |
| DHS32*40*5/7.5 | DHS48*56*5/6.5 | DHS75*85*6/8 |
| DHS32*40*6/9 | DHS48*65*5/6.5 | DHS76.2*88.9*6.35/9.53 |
| DHS80*88*4/7 | DHS120*130*6/8 | DHS165*179*7/9.5 |
| DHS80*90*5/8 | DHS120*132.2*7.2/12 | DHS170*184*7/9.5 |
| DHS80*90*6/8 | DHS124*139*6/9 | DHS177*192*6/9 |
| DHS80*93*7/10 | DHS125*135*6/8 | DHS180*190*6.8/7.6 |
| DHS82.55*95.25*6.35/9.53 | DHS125*137*8/10 | DHS180*192*9/12 |
| DHS84*99*6.5/11 | DHS125*138*7/9.5 | DHS180*193*7/9.5 |
| DHS85*95*6/8 | DHS125*139.5*8.5/12 | DHS180*194*7/9.5 |
| DHS85*98*6/9 | DHS125*140*6/8.5 | DHS180*195*6/8.5 |
| DHS86*97.5*7/10 | DHS130*140*7/9.5 | DHS180*195*6/9 |
| DHS88*98*6/8 | DHS130*143*7/9.5 | DHS180*195*6.5/11 |
| DHS90*98*5/8 | DHS135*148*6/9 | DHS180*198.5*9/14 |
| DHS90*100*6/8 | DHS136*149*7/9.5 | DHS185*195*7/9.5 |
| DHS92*105*7/10 | DHS140*150*7/9.5 | DHS187*200*7/9.5 |
| DHS95*105*6/8 | DHS140*153*7/9.5 | DHS200*214*7/9.5 |
| DHS98*108*6/8 | DHS140*160*8/16 | DHS204*218*7/9.5 |
| DHS98*113*6/9 | DHS141*151*5/7 | DHS207*217*5/7 |
| DHS100*110*5/7 | DHS145*155*7/10 | DHS210*220*7/10 |
| DHS100*110*6/8 | DHS145*158*7/9.5 | DHS210*223*7/9.5 |
| DHS100*112*7/10 | DHS149*164*6/9 | DHS210*223*7.5/10.5 |
| DHS100*112*8/10 | DHS150*162*8/10 | DHS212*226*7/9.5 |
| DHS100*112*7/11 | DHS150*164*7/9.5 | DHS210*226*12 |
| DHS100*115*6/8.5 | DHS150*165*6/8.5 | DHS220*234*7/9.5 |
| DHS101.6*114.3*7/10 | DHS150*165*6/9 | DHS230*244*7/9.5 |
| DHS105*115*6/8 | DHS150*168.5*9/14 | DHS250*264*7/9.5 |
| DHS105*118*6/8 | DHS155*165*7/9.5 | DHS265*280*7/9.5 |
| DHS110*120*6/8 | DHS160*170*7/9.5 | DHS280*294*9/11.5 |
| DHS110*123*6/9 | DHS160*173*6/9 | DHS330*350*10/14 |
| DHS110*125*6/9 | DHS160*174*7/9.5 | DHS345*365*10/15 |
| DHS112*122*6/8 | DHS160*175*8.5/12 | DHS400*420*10/18 |
| DHS115*125*6/8 | DHS162*172*5/7 | DHS420*455*24 |
| DHS118*128*6/8 | DHS162*175*6/9 | DHS475*495*10/15 |
| DHS120*130*5/7 | DHS165*175*7/10 | DHS720*750*18/27 |
| DHS120*130*7/10 |
