1. Description

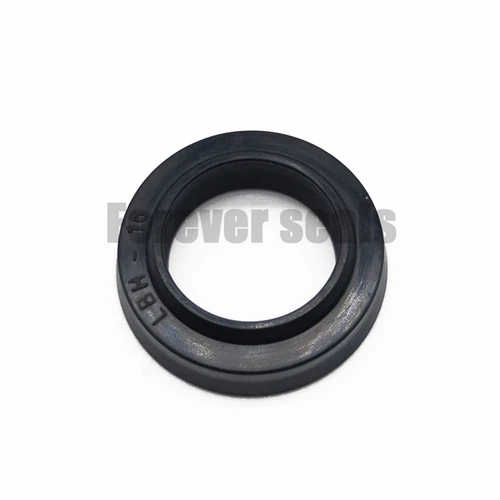

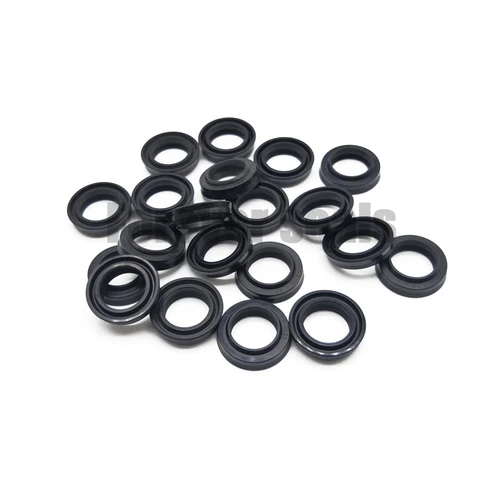

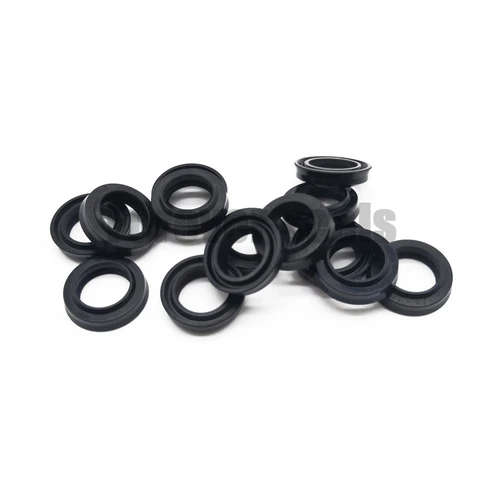

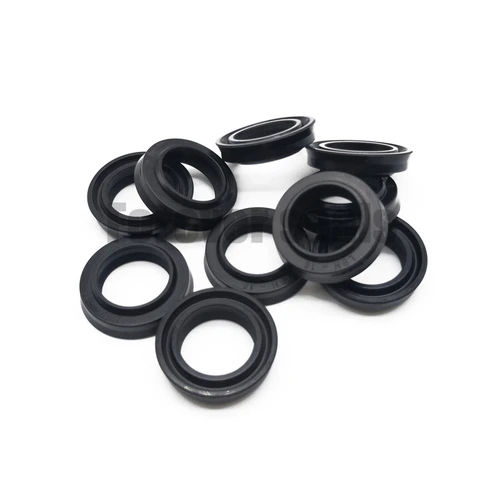

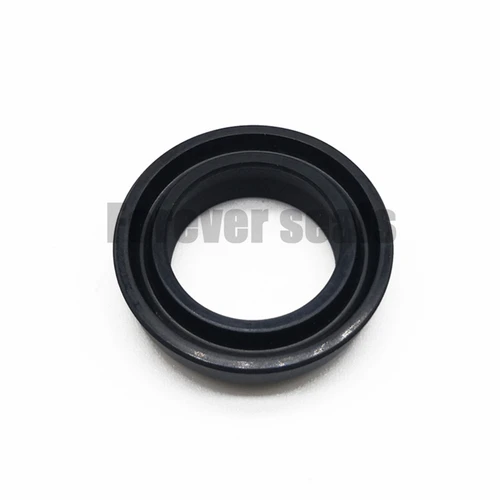

LBH Wiper Seal of Forever Seals is a scratch-resistant double lip rubber dustproof seal. The seals made of nitrile butadiene rubber and fluorine rubber are suitable for a wide range of operating temperatures, preventing dust from entering, protecting equipment and maintaining performance.
2. Installation Recommendation
3. Dimensions
| No. | CODE | SIZE | MATERIAL |
| 1 | LBH-11.2 | LBH11.2*19.2*6 | NBR/FKM |
| 2 | LBH-12 | LBH12*20*6 | NBR/FKM |
| 3 | LBH-12.5 | LBH12.5*20.5*6 | NBR/FKM |
| 4 | LBH-14 | LBH14*22*6 | NBR/FKM |
| 5 | LBH-16 | LBH16*24*6 | NBR/FKM |
| 6 | LBH-18 | LBH18*26*6 | NBR/FKM |
| 7 | LBH-20 | LBH20*28*6 | NBR/FKM |
| 8 | LBH-22 | LBH22*30*6 | NBR/FKM |
| 9 | LBH-22.4 | LBH22.4*30.4*6 | NBR/FKM |
| 10 | LBH-23.5 | LBH23.5*31.5*6 | NBR/FKM |
| 11 | LBH-25 | LBH25*33*6 | NBR/FKM |
| 12 | LBH-28 | LBH28*36*6 | NBR/FKM |
| 13 | LBH-30 | LBH30*38*6.5 | NBR/FKM |
| 14 | LBH-31.5 | LBH31.5*39.5*6.5 | NBR/FKM |
| 15 | LBH-32 | LBH32*40*6.5 | NBR/FKM |
| 16 | LBH-35 | LBH35*43*6.5 | NBR/FKM |
| 17 | LBH-35.5 | LBH35.5*43.5*6.5 | NBR/FKM |
| 18 | LBH-36 | LBH36*44*6.5 | NBR/FKM |
| 19 | LBH-38 | LBH38*46*6.5 | NBR/FKM |
| 20 | LBH-40 | LBH40*48*6.5 | NBR/FKM |
| 21 | LBH-45 | LBH45*53*6.5 | NBR/FKM |
| 22 | LBH-48 | LBH48*56*6.5 | NBR/FKM |
| 23 | LBH-50 | LBH50*58*6.5 | NBR/FKM |
| 24 | LBH-53 | LBH53*61*6.5 | NBR/FKM |
| 25 | LBH-55 | LBH55*63*6.5 | NBR/FKM |
| 26 | LBH-56 | LBH56*64*6.5 | NBR/FKM |
| 27 | LBH-58 | LBH58*66*6.5 | NBR/FKM |
| 28 | LBH-60 | LBH60*68*6.5 | NBR/FKM |
| 29 | LBH-63 | LBH63*71*6.5 | NBR/FKM |
| 30 | LBH-65 | LBH65*73*6.5 | NBR/FKM |
| 31 | LBH-67 | LBH67*75*6.5 | NBR/FKM |
| 32 | LBH-70 | LBH70*80*8 | NBR/FKM |
| 33 | LBH-71 | LBH71*81*8 | NBR/FKM |
| 34 | LBH-75 | LBH75*85*8 | NBR/FKM |
| 35 | LBH-80 | LBH80*90*8 | NBR/FKM |
| 36 | LBH-85 | LBH85*95*8 | NBR/FKM |
| 37 | LBH-90 | LBH90*100*8 | NBR/FKM |
| 38 | LBH-95 | LBH95*105*8 | NBR/FKM |
| 39 | LBH-98 | LBH98*108*8 | NBR/FKM |
| 40 | LBH-100 | LBH100*110*8 | NBR/FKM |
| 41 | LBH-105 | LBH105*115*8 | NBR/FKM |
| 42 | LBH-110 | LBH110*120*8 | NBR/FKM |
| 43 | LBH-112 | LBH112*122*8 | NBR/FKM |
| 44 | LBH-115 | LBH115*125*8 | NBR/FKM |
| 45 | LBH-118 | LBH118*128*9.5 | NBR/FKM |
| 46 | LBH-120 | LBH120*130*9.5 | NBR/FKM |
| 47 | LBH-125 | LBH125*138*9.5 | NBR/FKM |
| 48 | LBH-130 | LBH130*143*9.5 | NBR/FKM |
| 49 | LBH-136 | LBH136*149*9.5 | NBR/FKM |
| 50 | LBH-140 | LBH140*153*9.5 | NBR/FKM |
| 51 | LBH-145 | LBH145*158*9.5 | NBR/FKM |
| 52 | LBH-150 | LBH150*163*9.5 | NBR/FKM |
| 53 | LBH-153 | LBH153*165*9.5 | NBR/FKM |
| 54 | LBH-155 | LBH155*167*9.5 | NBR/FKM |
| 55 | LBH-160 | LBH160*174*9.5 | NBR/FKM |
| 56 | LBH-165 | LBH165*179*9.5 | NBR/FKM |
| 57 | LBH-170 | LBH170*184*9.5 | NBR/FKM |
| 58 | LBH-175 | LBH175*189*9.5 | NBR/FKM |
| 59 | LBH-180 | LBH180*190*9.5 | NBR/FKM |
| 60 | LBH-190 | LBH190*204*9.5 | NBR/FKM |
| 61 | LBH-200 | LBH200*214*9.5 | NBR/FKM |
| 62 | LBH-204 | LBH204*218*9.5 | NBR/FKM |
| 63 | LBH-220 | LBH220*234*9.5 | NBR/FKM |
| 64 | LBH-224 | LBH224*237*7/9.5 | NBR/FKM |
| 65 | LBH-225 | LBH225*238*7/9.5 | NBR/FKM |
| 66 | LBH-230 | LBH230*244*7/9.5 | NBR/FKM |
| 67 | LBH-240 | LBH240*256*10/13 | NBR/FKM |
| 68 | LBH-250 | LBH250*260*10/13 | NBR/FKM |
| 69 | LBH-280 | LBH280*296*9/12 | NBR/FKM |
| 70 | LBH-310 | LBH310*325*9/12 | NBR/FKM |
