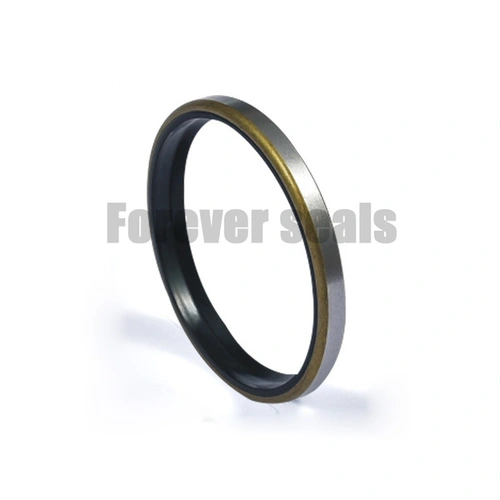

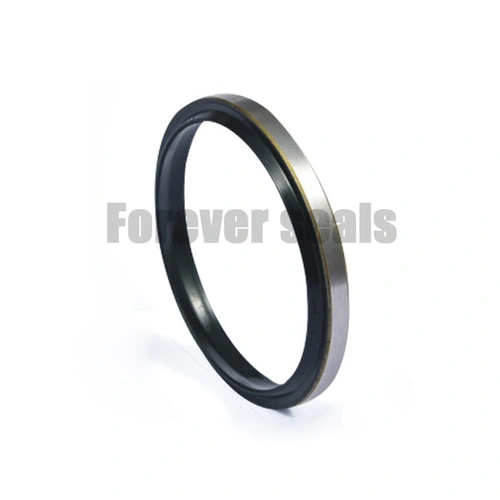

GA Wiper Seal

  • Temperature: -35 - +100℃
  • Material: NBR, Metal

  • Color: black

  • Medium: Hydraulic oil

1. Description

GA wiper seal from Forever Seals is a kind of scraper seals.  It often used together with other sealing components to let a ram rod pass through the inner bore of a seal for preventing leakage. GA wiper seal is extremely important in ensuring that outside contaminants are kept out of hydraulic operating systems. By keeping everything from dirt to moisture outside of the system, scraper seals prevent any damage to rods, cylinder walls, seals and other important elements of the system.


2. Installation Recommendation


3. Standard materials

NBR, FKM


4. Installation Dimensions

d

D

H

H2

Order No.

20

30

7

10

GA20*30*7/10

25

35

7

10

GA25*35*7/10

30

40

7

10

GA30*40*7/10

40

50

7

10

GA40*50*7/10

45

55

7

10

GA45*55*7/10

50

60

7

10

GA50*60*7/10

55

65

7

10

GA55*65*7/10

60

70

7

10

GA60*70*7/10

65

75

7

10

GA65*75*7/10

70

80

7

10

GA70*80*7/10

75

85

7

10

GA75*85*7/10

80

90

7

10

GA80*90*7/10

85

95

7

10

GA85*95*7/10

90

100

7

10

GA90*100*7/10

95

105

7

10

GA95*105*7/10

100

110

7

10

GA100*110*7/10

105

115

7

10

GA105*115*7/10

110

120

7

10

GA110*120*7/10

115

125

7

10

GA115*125*7/10

120

130

7

10

GA120*130*7/10

125

140

9

12

GA125*140*9/12

130

140

7

10

GA130*140*7/10

140

155

9

12

GA140*155*9/12

150

165

9

12

GA150*165*9/12

160

175

9

12

GA160*175*9/12

170

185

9

12

GA170*185*9/12

180

195

9

12

GA180*195*9/12

200

215

9

12

GA200*215*9/12
