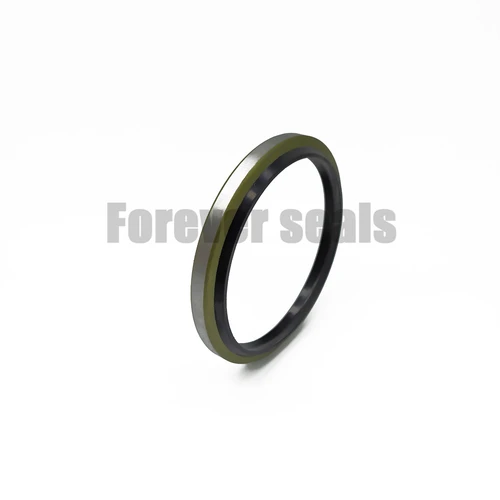

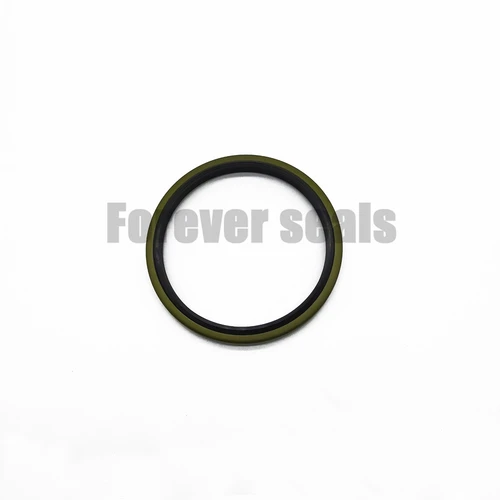

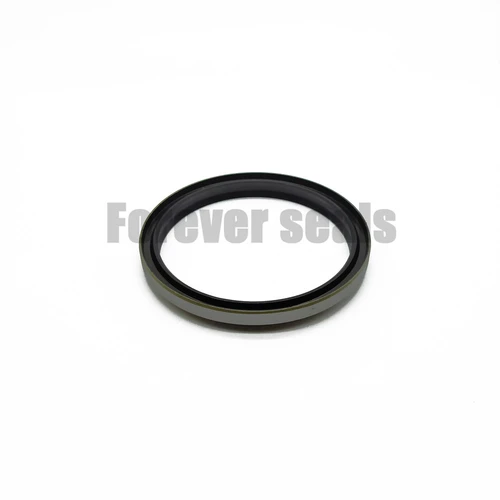

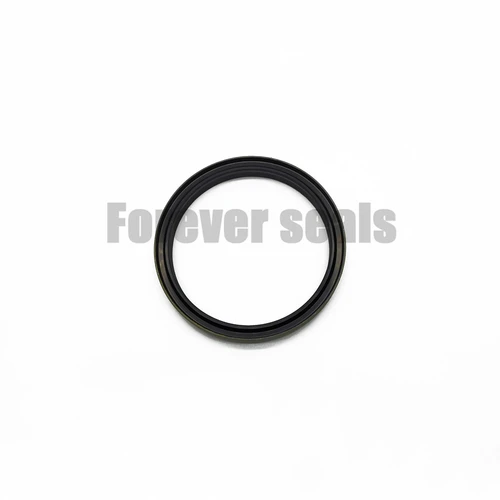

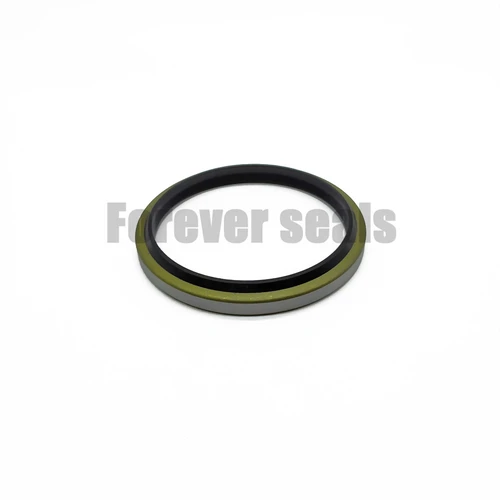

DKB Wiper Seal

  • Temperature: -35 - +100℃

  • Material: NBR, Metal

  • Color: black

  • Medium: Hydraulic oil

1. Description

DKB wiper seal from Forever Seals is a kind of scraper seals.  It often used together with other sealing components to let a ram rod pass through the inner bore of a seal for preventing leakage. DKB wiper seal is extremely important in ensuring that outside contaminants are kept out of hydraulic operating systems. By keeping everything from dirt to moisture outside of the system, scraper seals prevent any damage to rods, cylinder walls, seals and other important elements of the system.


2. Installation Recommendation



3. Standard materials

Metal+NBR


4. Dimensions

ITEMMATERIALSIZE
DKBNBR14*22*4.5/5.5
DKBNBR14*22*5/7
DKBNBR20*32*6/9
DKBNBR25*37*6/9
DKBNBR28*40*6/9
DKBNBR30*42*6/9
DKBNBR32*44*7/10
DKBNBR35*47*7/10
DKBNBR40*52*7/10
DKBNBR45*57*7/10
DKBNBR50*62*7/10
DKBNBR50*64*8/11
DKBNBR55*69*8/11
DKBNBR60*74*8/11
DKBNBR65*79*8/11
DKBNBR70*84*8/11
DKBNBR75*89*8/11
DKBNBR80*94*8/11
DKBNBR85*99*8/11
DKBNBR90*104*8/11
DKBNBR95*109*8/11
DKBNBR100*114*8/11
DKBNBR105*121*9/12
DKBNBR110*126*9/12
DKBNBR115*131*9/12
DKBNBR120*136*9/12
DKBNBR125*141*9/12
DKBNBR130*146*9/12
DKBNBR140*160*10/14
DKBNBR150*170*10/14
DKBNBR160*180*10/14
DKBNBR170*190*10/14
DKBNBR180*205*12/17
DKBNBR190*215*12/17
DKBNBR210*235*12/17
